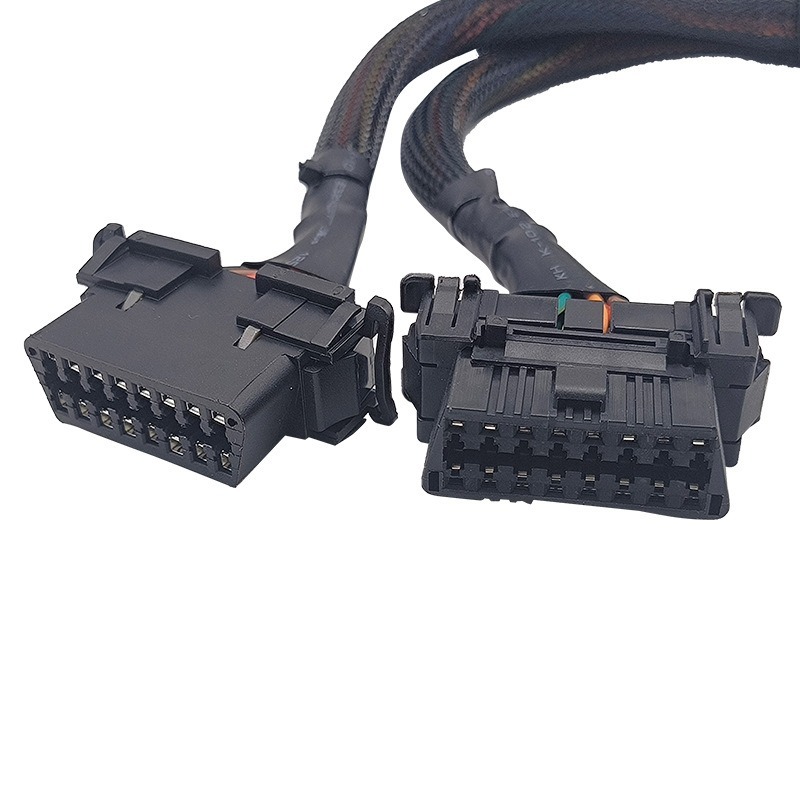

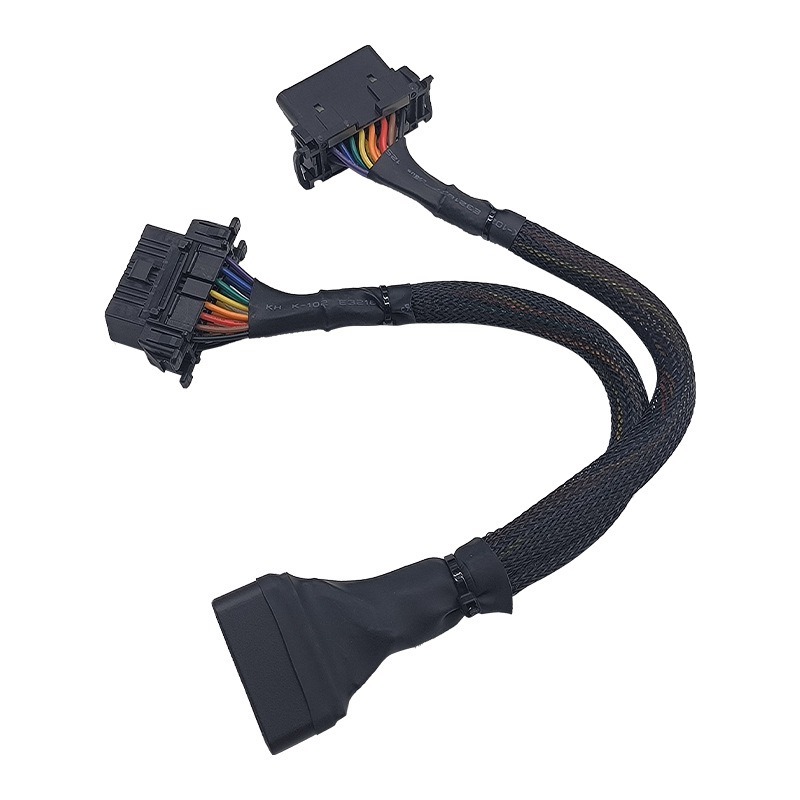

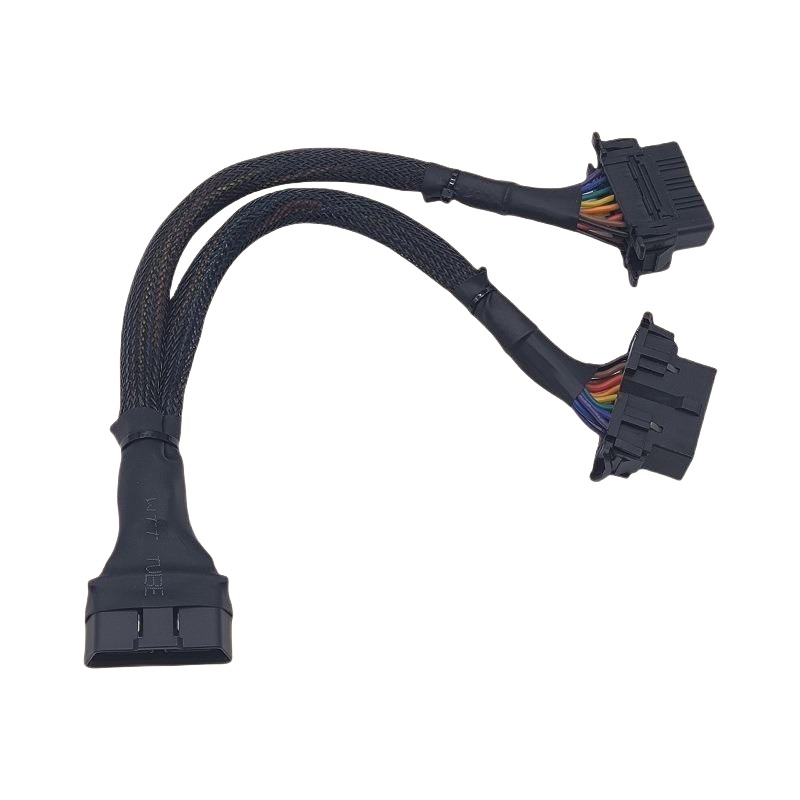

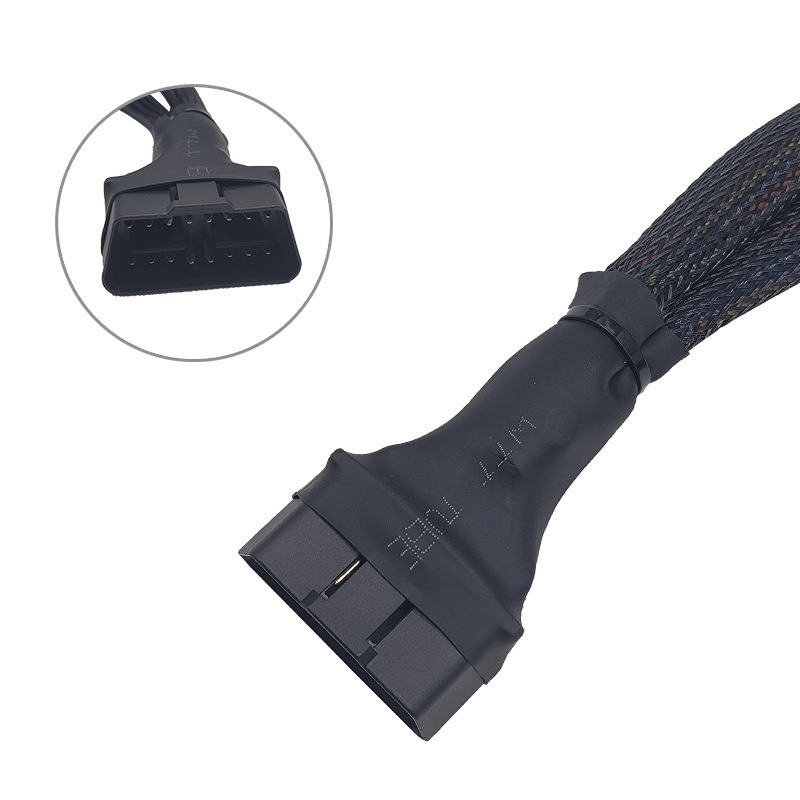

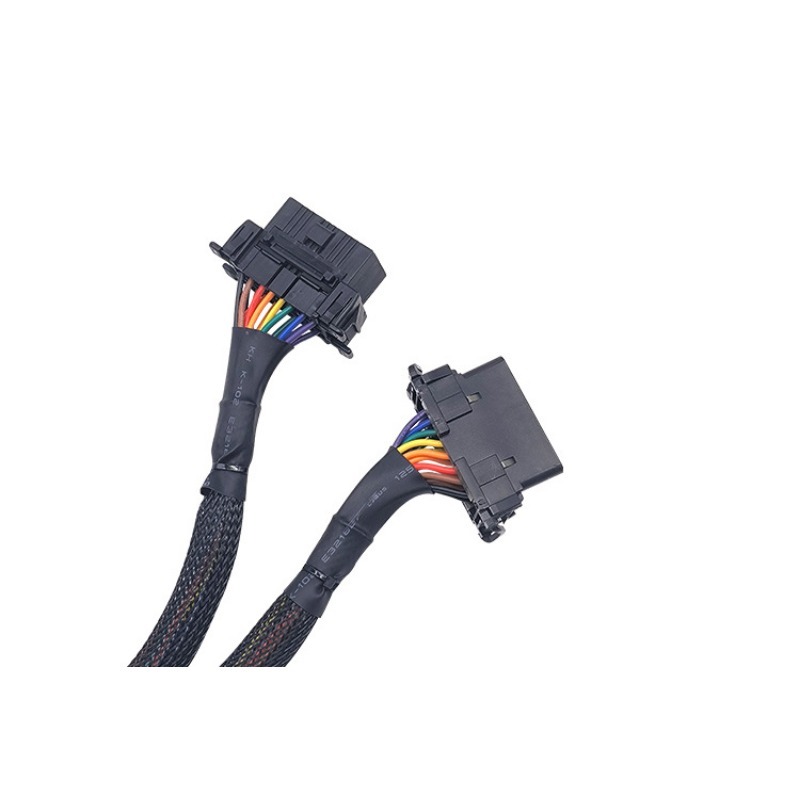

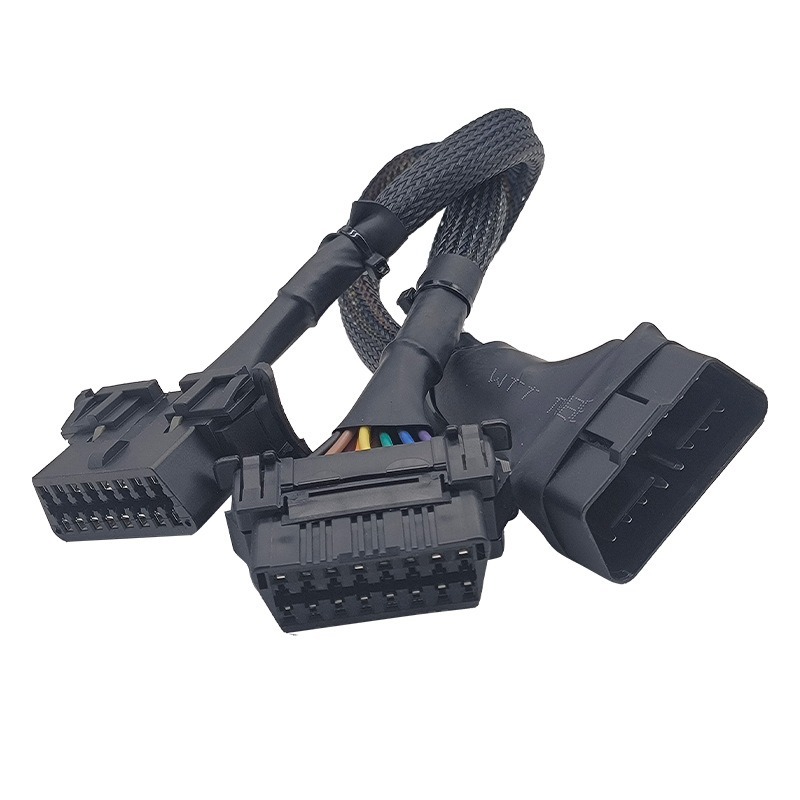

Automotive OBD Interface Connection Wire, 16-Pin One-to-Two Braided Sleeve Automotive OBDⅡ Fault Detection Wiring Harness

Product Name:

Automotive OBD Interface Connection Wire, 16-Pin One-to-Two Braided Sleeve Automotive OBDⅡ Fault Detection Wiring Harness

Summary:

The Automotive OBD Interface Connection Wire is designed for automotive OBDⅡ fault detection systems, featuring a 16-pin one-to-two braided sleeve design. With a rated voltage of 12V and an operating temperature of 80℃, this wiring harness ensures reliable performance for automotive diagnostics and other applications.

Detailed Description:

The Automotive OBD Interface Connection Wire is a high-quality wiring harness designed for automotive OBDⅡ fault detection systems. This wiring harness features a 16-pin one-to-two braided sleeve design, providing durability and flexibility for various automotive diagnostic applications.

Constructed with a black PVC sheath that is 0.78mm thick, this wiring harness offers excellent protection and durability. The purple copper conductors ensure superior conductivity and reliable electrical connections, making this harness ideal for high-performance automotive diagnostics.

With a rated voltage of 12V and an operating temperature of 80℃, this wiring harness is built to withstand demanding electrical and environmental conditions, ensuring consistent performance. The nominal cross-section of 4.0mm² and flame-retardant properties add an extra layer of safety, making this wiring harness suitable for use in various automotive environments.

Key Features:

• Operating Temperature: 80℃

• Applicable Models: Automotive OBD wiring harness

• Voltage: 12V

• Type: Automotive fault diagnosis instrument

• Outer Diameter: 0.75mm

• Application: Automotive, electronic, mechanical, lighting, new energy

• Wire Gauge: AVS, AVSS, FLRY, TXL, GXL, SXL, GPT

• Sheath Thickness: 0.78mm

• Sheath Color: Black

• Flame-Retardant Properties: Flame-retardant

• Core Count: 7-core

• Insulation Thickness: 0.38mm

• Rated Voltage: 80V to 600V

• Sheath Material: PVC

• Conductor Material: Purple copper

• Nominal Cross-Section: 4.0mm²

• 3C Rated Voltage Range: 80V to 220V
