US31003 MC4 Photovoltaic Connector, Waterproof Solar Panel Connector

Return to List >>

Consultation cooperation >>

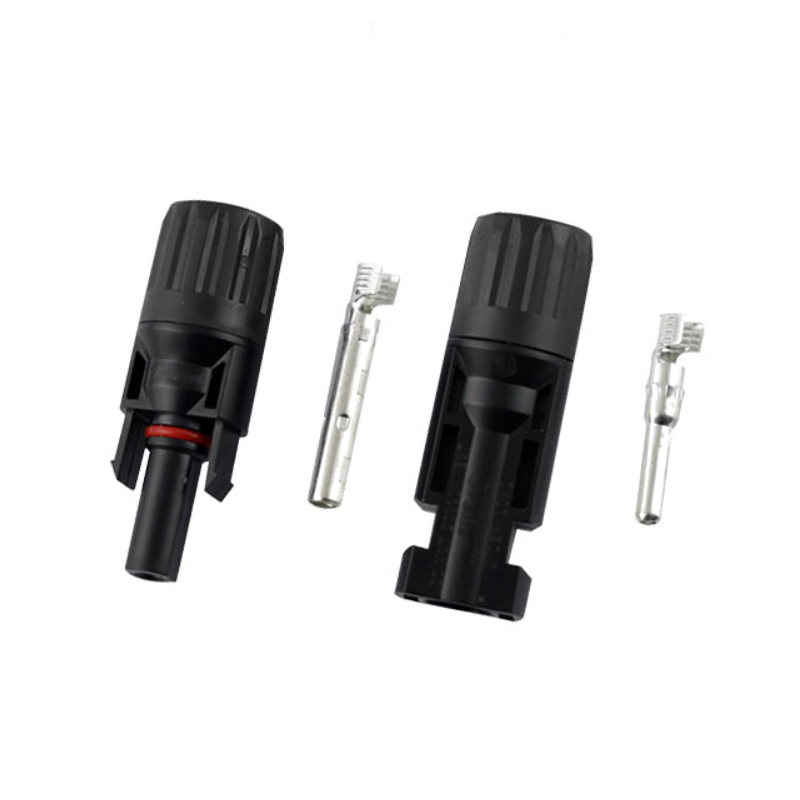

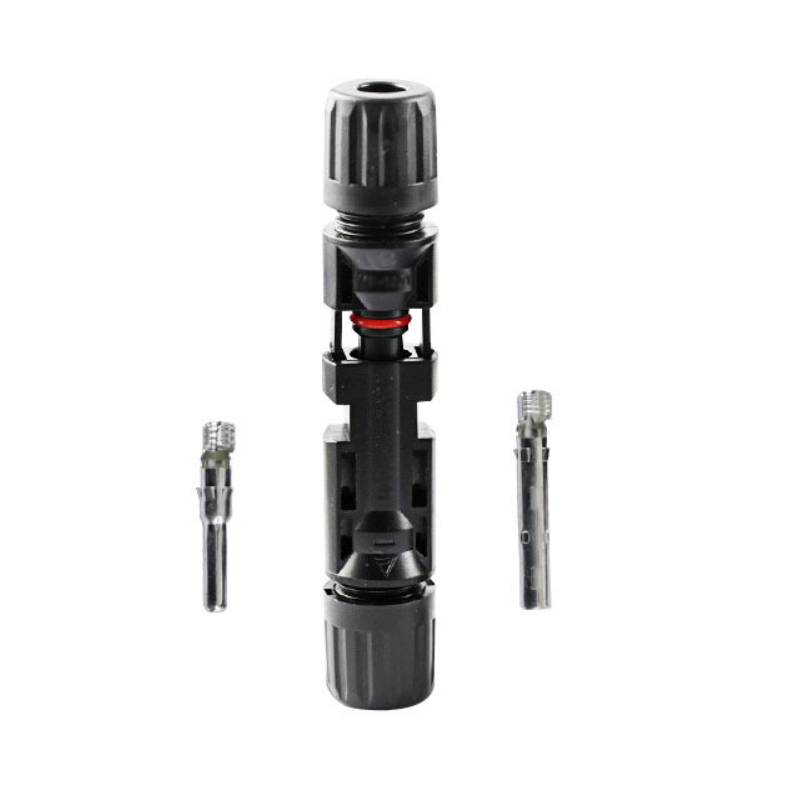

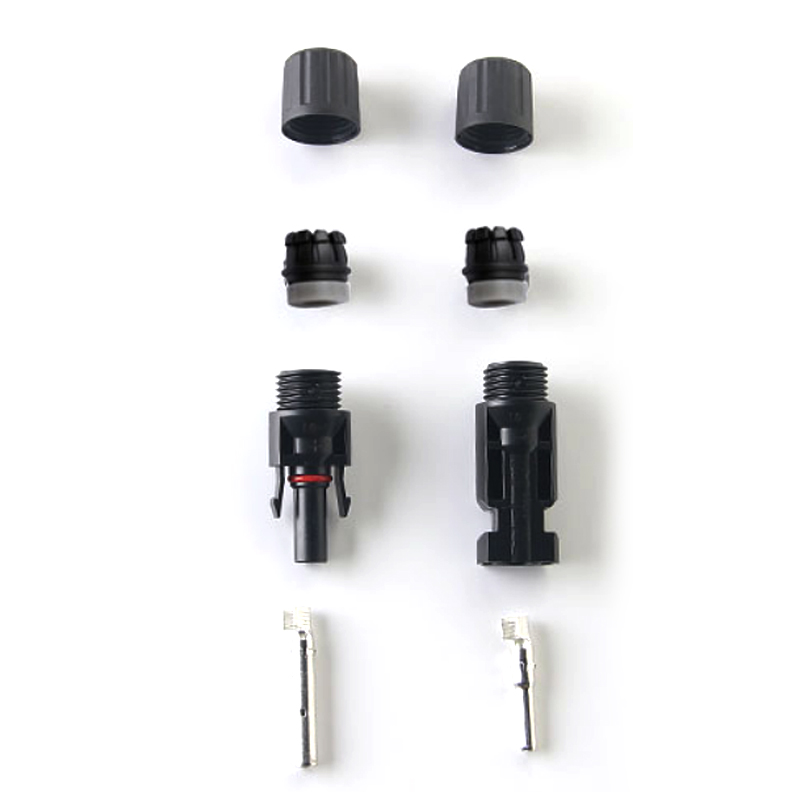

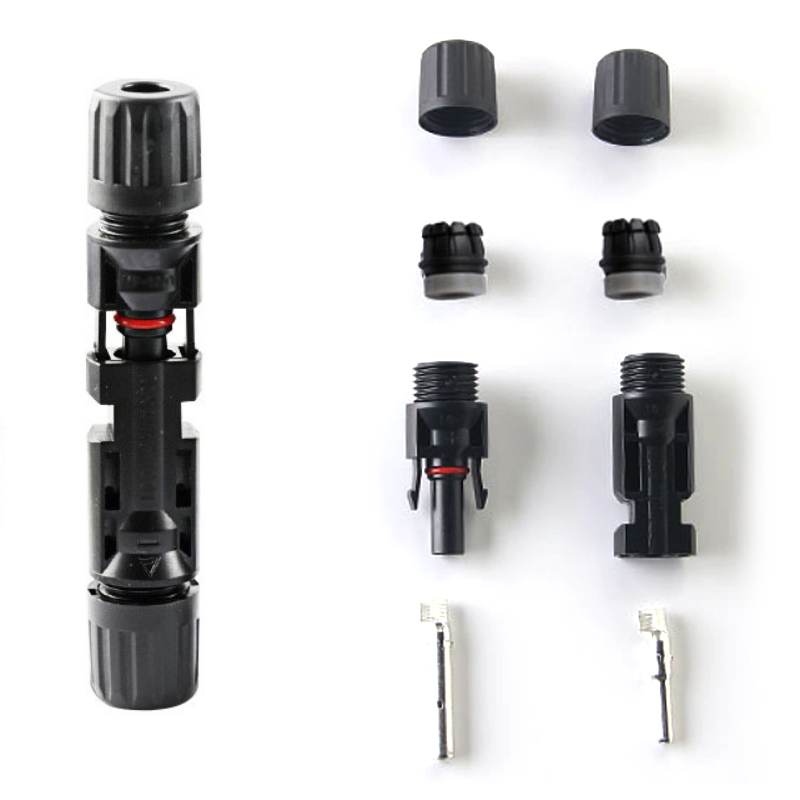

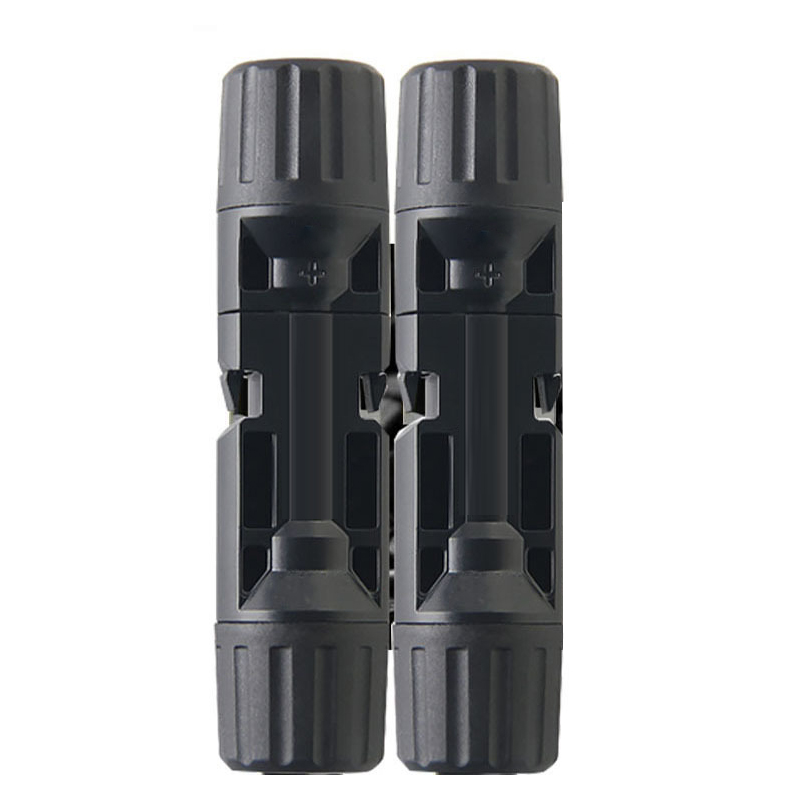

The MC4 photovoltaic connector is a high-performance solar panel connector designed for secure and waterproof connections in solar energy systems. With an IP68 protection rating, silver-plated copper contacts, and durable PPO housing, it ensures efficient power transmission and long-lasting performance in harsh environments. Suitable for residential, commercial, and industrial solar power systems.

Product Number: US31003

Specifications:

Housing Material: Black PPO
Inner Core Material: Copper (Silver-Plated)
Protection Rating: IP68
Wire Size Compatibility: 2.5mm² / 4.0mm² / 6.0mm²
Number of Cores: 2
Outer Diameter: 6.5mm
Technical Specs: 2-pin, Plug & Play, IP68, 30A, 1000V, ≤4mm², Black
Application: Connects solar panels to power devices, converting solar energy into DC power

Detailed Product Description

This MC4 solar panel connector is an essential component for solar power installations, designed to establish a secure and reliable electrical connection between solar panels and power systems. Constructed with high-quality PPO housing, this waterproof solar connector provides excellent UV resistance, flame retardancy, and durability, making it ideal for outdoor applications.

Featuring silver-plated copper conductors, the MC4 photovoltaic connector offers low contact resistance and high conductivity, ensuring efficient energy transfer with minimal power loss. The IP68-rated sealing protects against dust, water ingress, and extreme weather conditions, making it suitable for harsh environments.

Designed for quick and easy installation, this solar panel MC4 connector supports plug-and-play connections with 2.5mm², 4.0mm², and 6.0mm² cables, and it operates at 30A and 1000V DC. Its secure locking mechanism ensures stable performance and prevents accidental disconnection.

This universal MC4 solar connector is widely used in residential solar power systems, large photovoltaic power stations, off-grid solar setups, and commercial solar farms. It is compatible with most solar panels and essential for reliable and efficient solar energy conversion.
