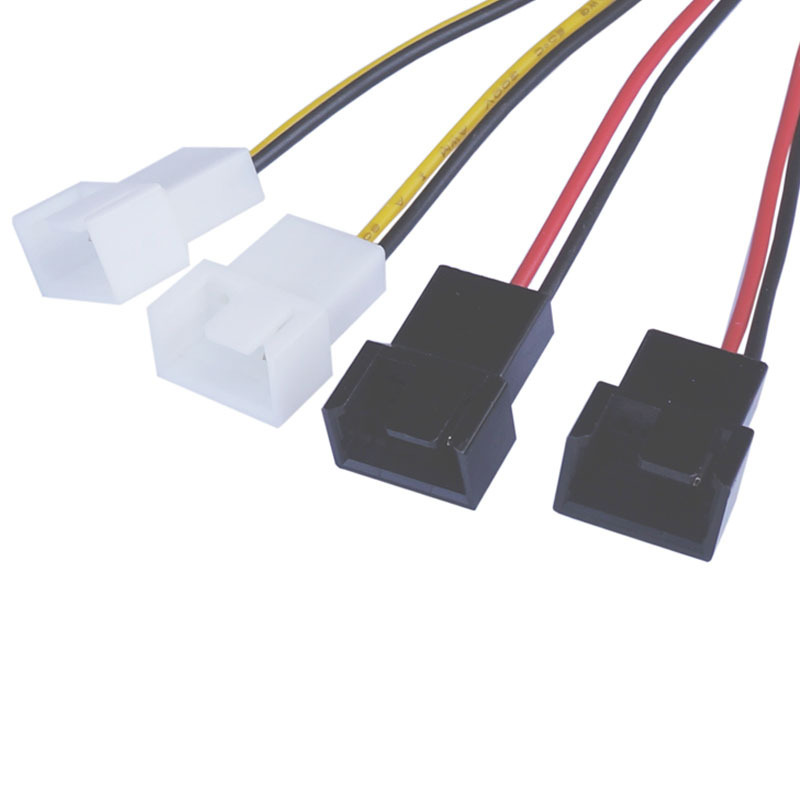

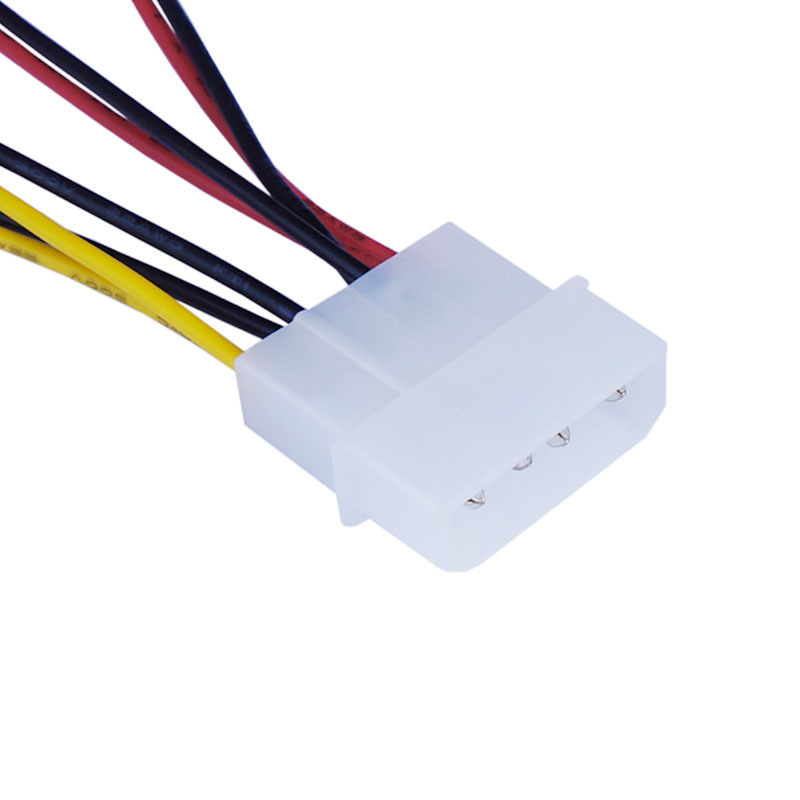

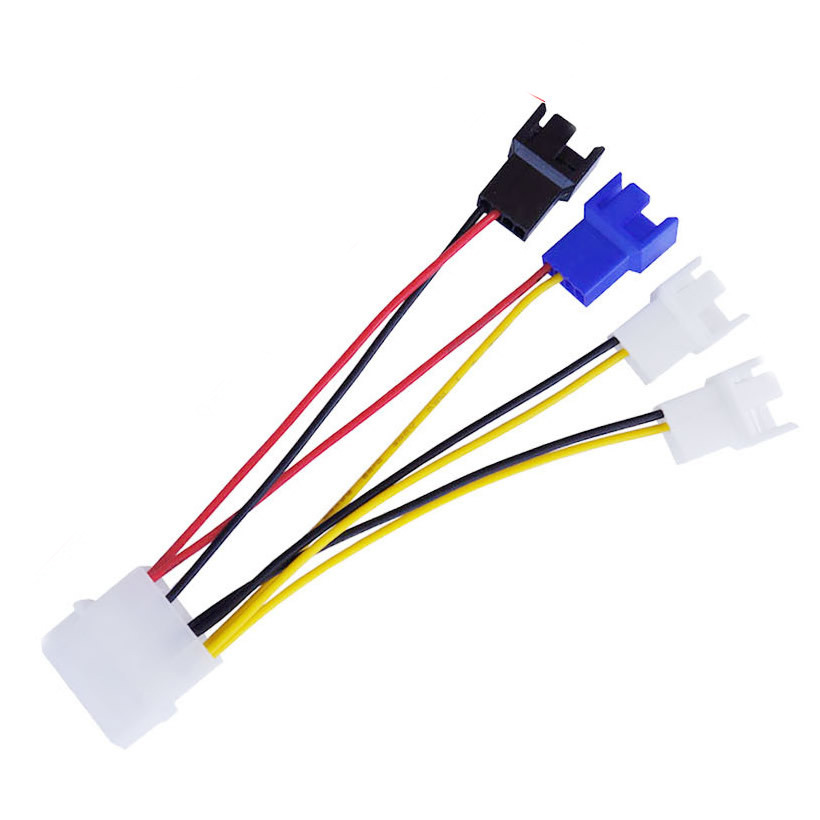

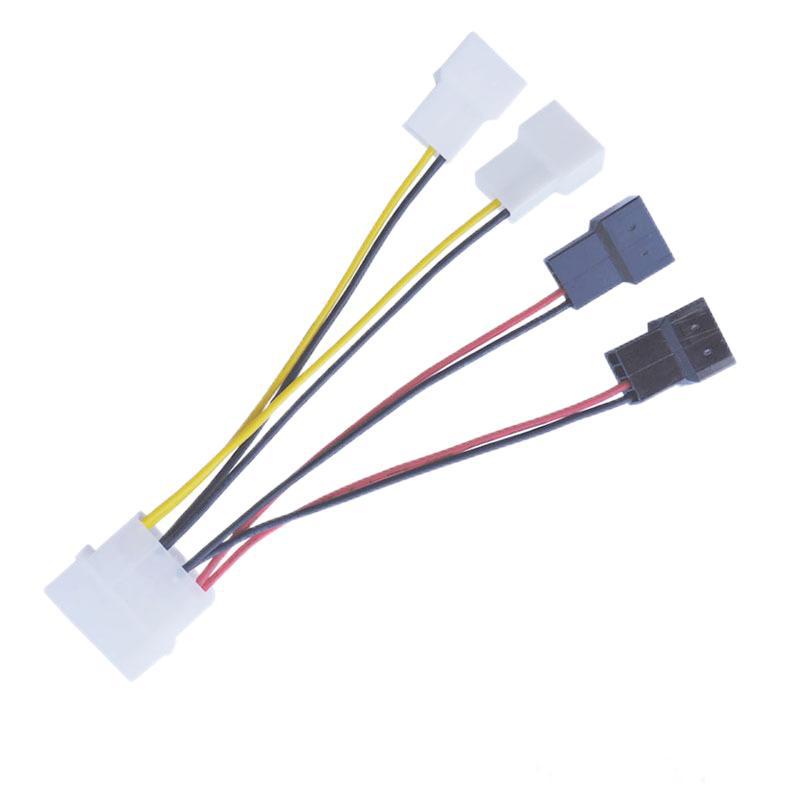

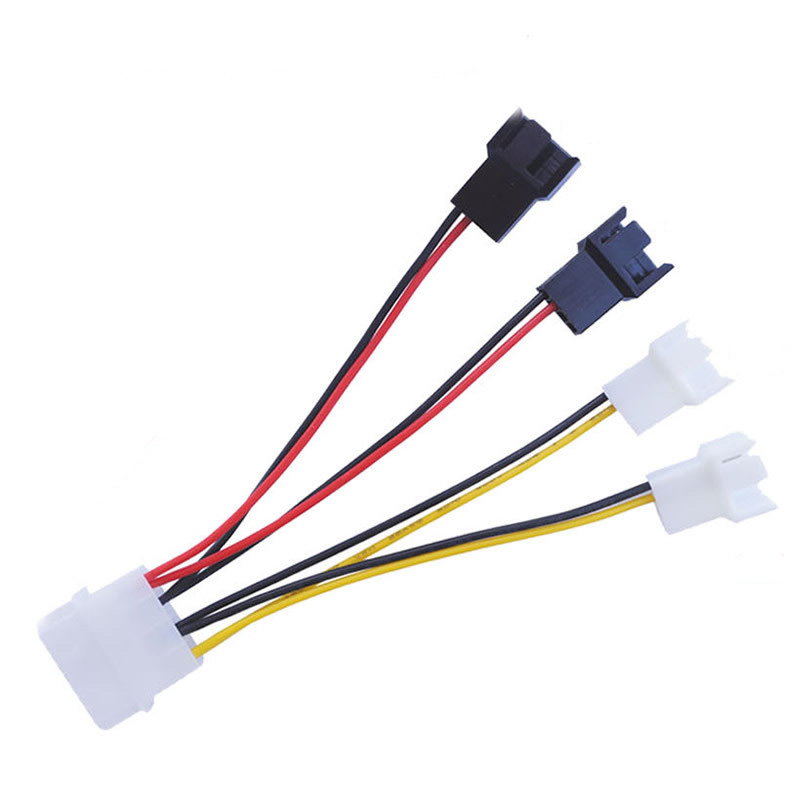

AT9010 Desktop computer fan D port to 4 1/4 adapter cable, big 4p to small 4pin 12/7/5V speed control cable

Product Name: Desktop computer fan D port to 4 1/4 adapter cable, big 4p to small 4pin 12/7/5V speed control cable

Product Code: AT9010

Length: 12.5cm

Wire model: 1007 22AWG

Insulation material: PVC insulation

Conductor specification: 17 * 0.12TS

Material: Tin plated copper

Outer diameter: OD 1.6mm

Rated temperature: 80 ℃

Interface: Power supply 4pin to 3Pin interface divided into four channels (2 12V and 2 5V)

Function: Solve the problem of insufficient 3Pin interface. Changing to a different interface can adjust the speed of the fan. Usage: The power supply is powered from port D and can simultaneously start 2 12V or 5V fans! Can be used for fan speed reduction as a speed reduction line. Instructions for use: Two 12V power sources are used, and the 12V fan is running at full speed normally (12V is the yellow black line). Two 5V power sources are used, and using 5V for the 12V fan can reduce the speed and reduce wind noise! (5V for red and black lines)

Companies can customize a wide variety of such products
