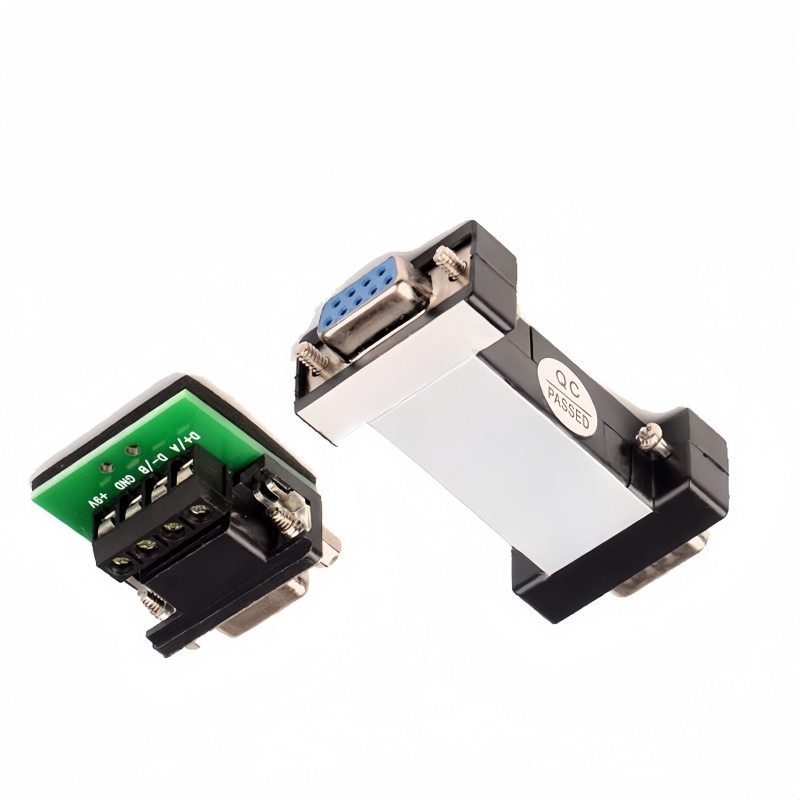

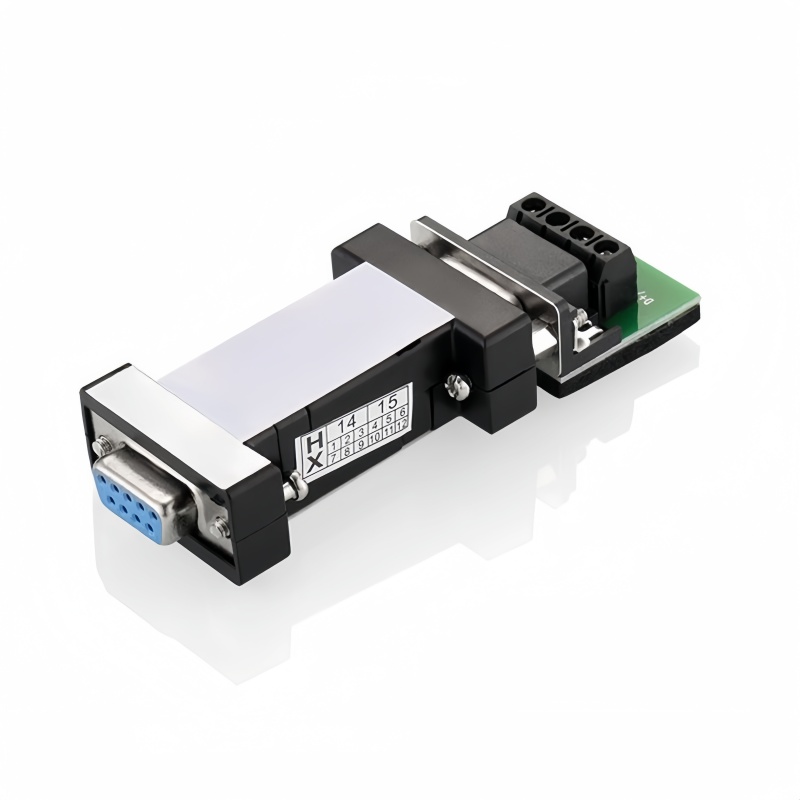

AT9016 232 to 485 Passive Converter RS232 to RS485 Serial Port Protocol Communication Module Isolation Lightning Protection Adapter
RS232 to RS485 passive converter is a high-performance serial protocol communication module, which is suitable for various industrial automation and data transmission scenarios. The product can reliably convert RS232 signals to RS485 signals, ensuring efficient communication between devices.
Product Name: 232 to 485 Passive Converter RS232 to RS485 Serial Port Protocol Communication Module Isolation Lightning Protection Adapter
Product Code: AT9016
Communication speed
300bps-115.2kbps
transmission distance
1200 meters (RS-485 end) and 15 meters (RS-232 end)
Transmission medium
Twisted pair or shielded wire
Appearance Features

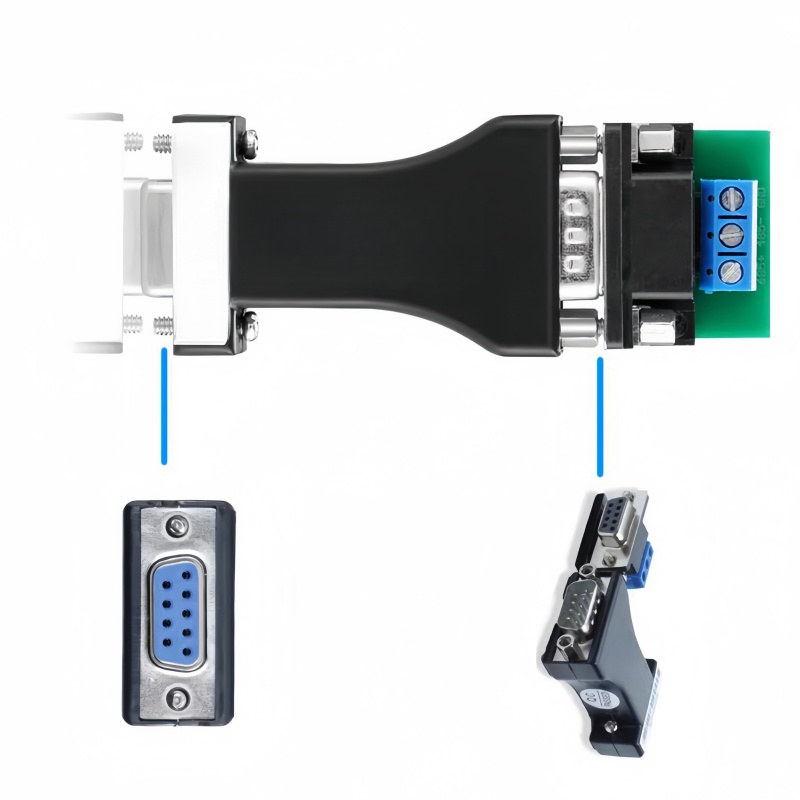

Integrated design, RS-232C end DB9 hole, RS-458 end terminal post, more reliable wiring, compact size
Electrical characteristics
Compatible with RS-232C, RS-485/422TIA/EIA standards, true three wire (TXD, RXD, GND) communication at the RS-232 end, no need to initialize the serial port
Companies can customize a wide variety of such products
