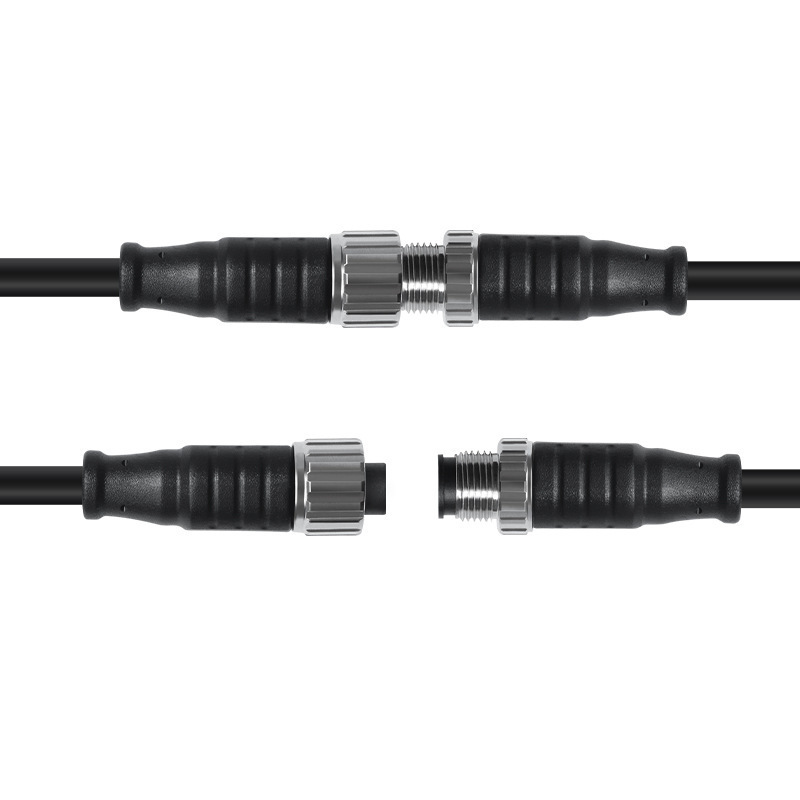

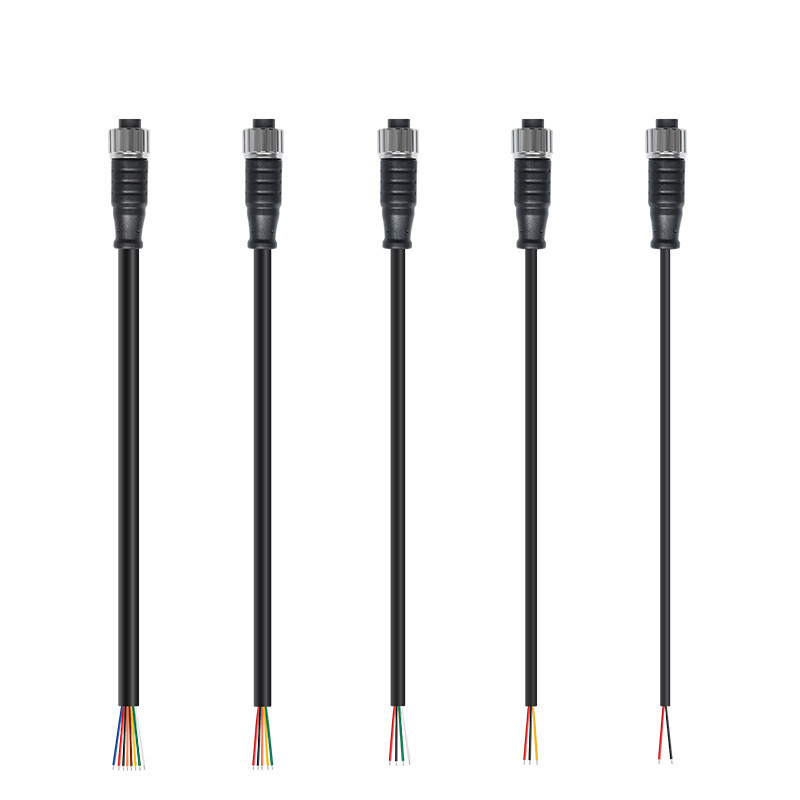

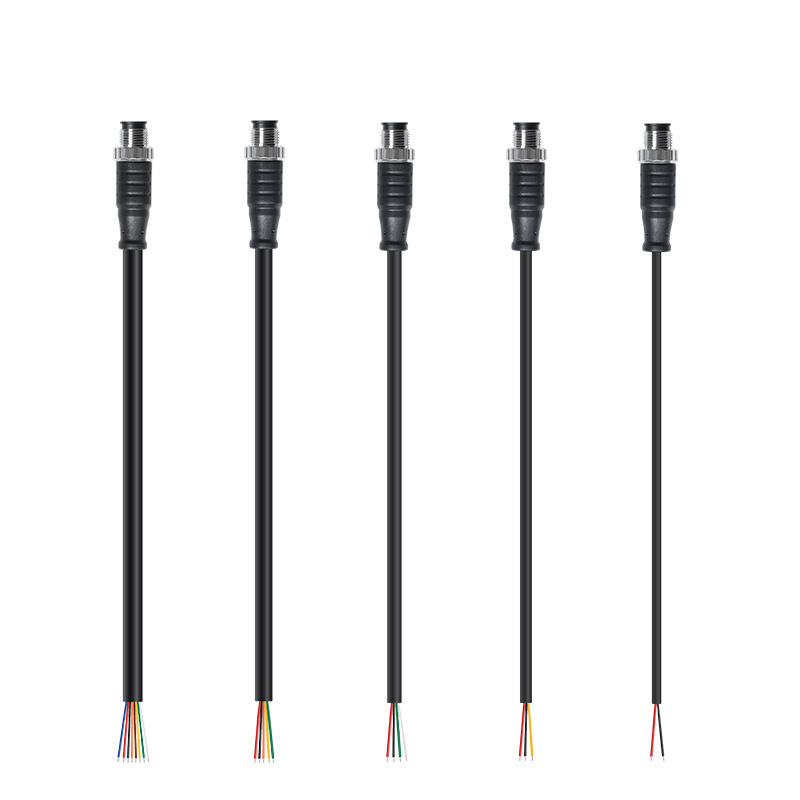

AT9087 M12 Waterproof Aviation 2-3-4-5-8P Male and Female Connectors with Tinned Tail
M12 waterproof aviation plugs available in 2, 3, 4, 5 and 8 pin male/female connectors, all with tin tails. Designed for harsh environments, these connectors provide excellent water resistance, ensuring a stable electrical connection in wet or underwater environments.
Product Name: M12 Waterproof Aviation 2-3-4-5-8P Male and Female Connectors with Tinned Tail
Product Number: AT9087
Wire Length: 0.25 meters
Insulation Color: Black
Core Material: Pure Copper
Insulation Thickness: Conventional
Sheath Color: Black
Sheath Thickness: Conventional
Interface Type: M12
Insulation Material: PVC
Flame Retardant and Fire-resistant Characteristics: Flame Retardant
Wire Sheath: Black PVC
Wire Specifications:2P: 11/0.15BC * 2C with an outer diameter of 3.0mm.
3P: 11/0.15BC * 3C with an outer diameter of 3.5mm.
4P: 11/0.15BC * 4C with an outer diameter of 3.8mm.
5P: 11/0.15BC * 5C with an outer diameter of 5.0mm.
8P: 11/0.15BC * 8C with an outer diameter of 5.5mm.
