LY8350 XH-type terminal wires 3-pin red-black-blue LED wiring harness home-appliance connector connection wires speaker wires

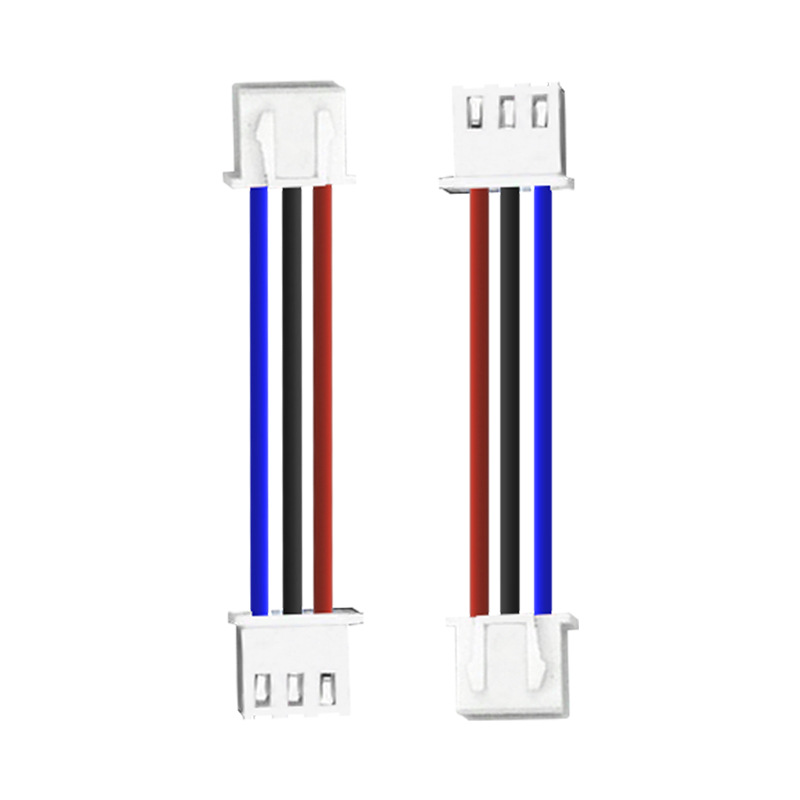

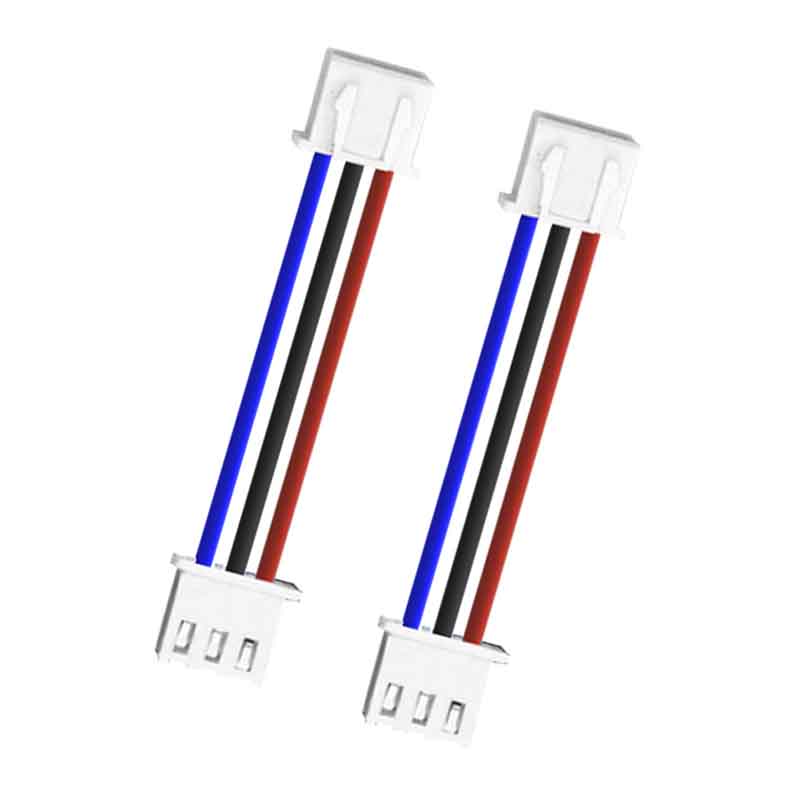

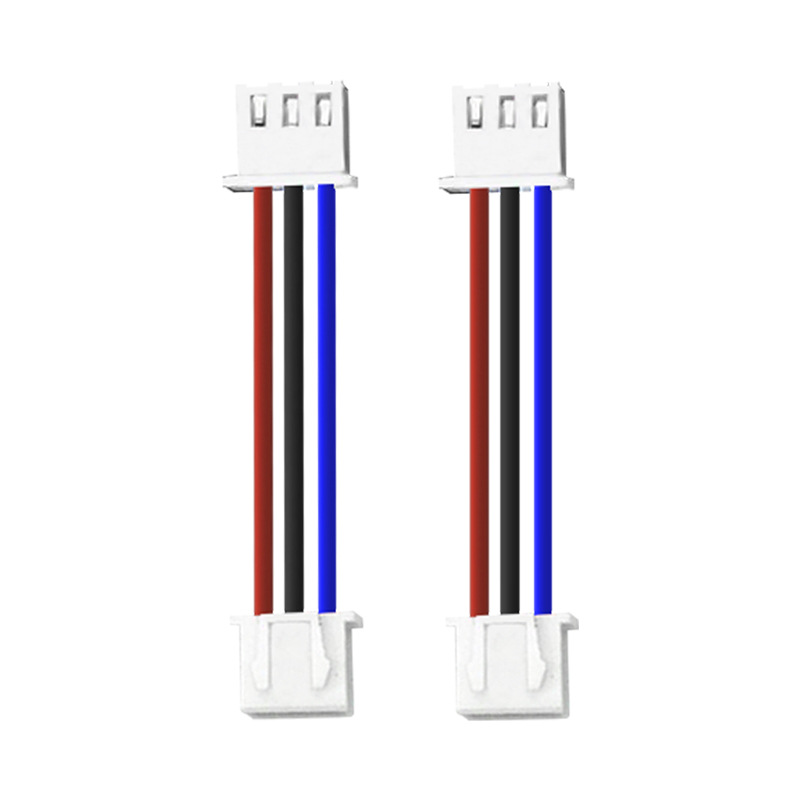

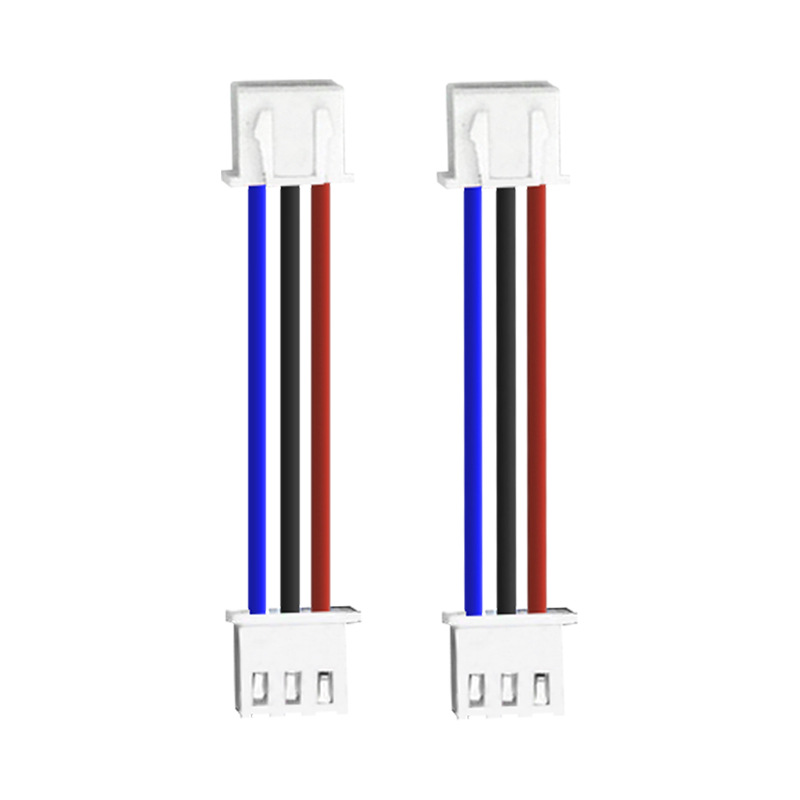

XH terminal wire harnesses adopt a standard 2.54mm pitch design, precision-crimped with phosphor bronze tinned terminals and eco-friendly PVC wires, featuring excellent electrical conductivity, high-temperature resistance, and corrosion resistance. Their compact structure saves space and ensures easy plugging/unplugging, widely used in home appliances, computer motherboards, industrial control, and automotive electronics to ensure stable signal transmission and highly reliable connections.
Manufacturing Process: Cold Pressing
Contact Material: PVC
Application Field: Instrumentation
Product Certification: UL
Flame Retardant Grade: 80℃
Product Series: 2468#26 XH-3P Red-Black-Blue
Application Scope: Health Equipment, LED Lighting, Smart Door Locks, Computers, Digital Products, Juicers, Smart Home Appliances, Mechanical Equipment
Terminal Wires: Terminal Wires, Connecting Wires

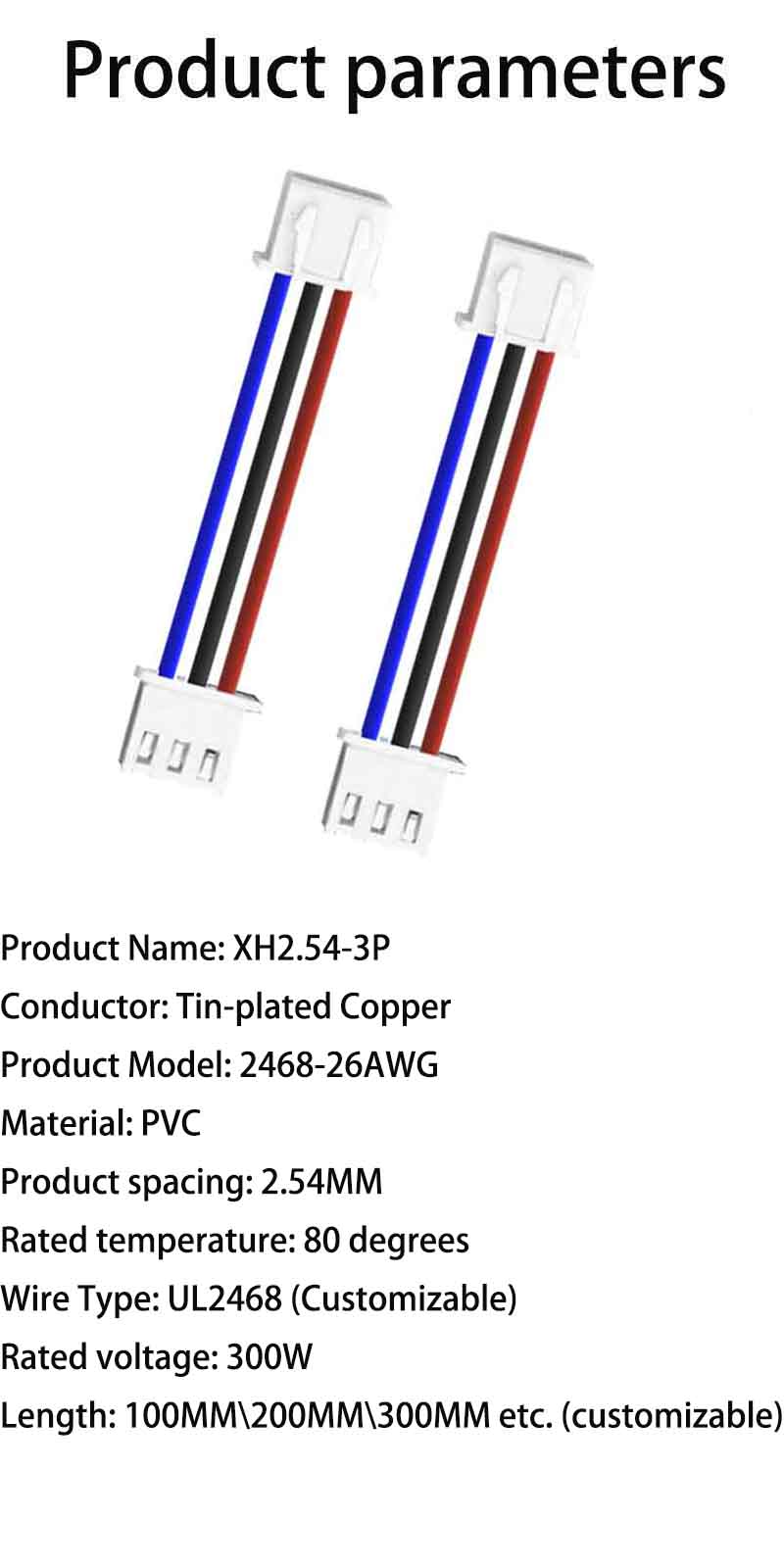

Product Name: XH2.54-3P
Conductor: Tinned Copper
Product Model: 2468-26AWG
Material: PVC
Product Pitch: 2.54MM
Rated Temperature: 80℃
Wire Type: UL2468 (Customizable)
Rated Voltage: 300V
Length: 100MM/200MM/300MM, etc. (Customizable)
