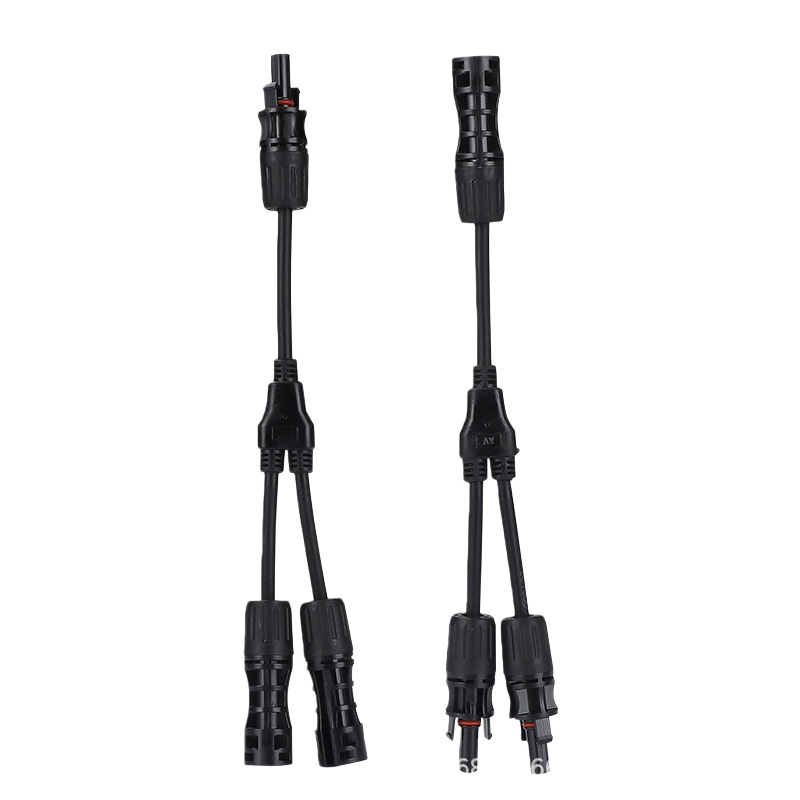

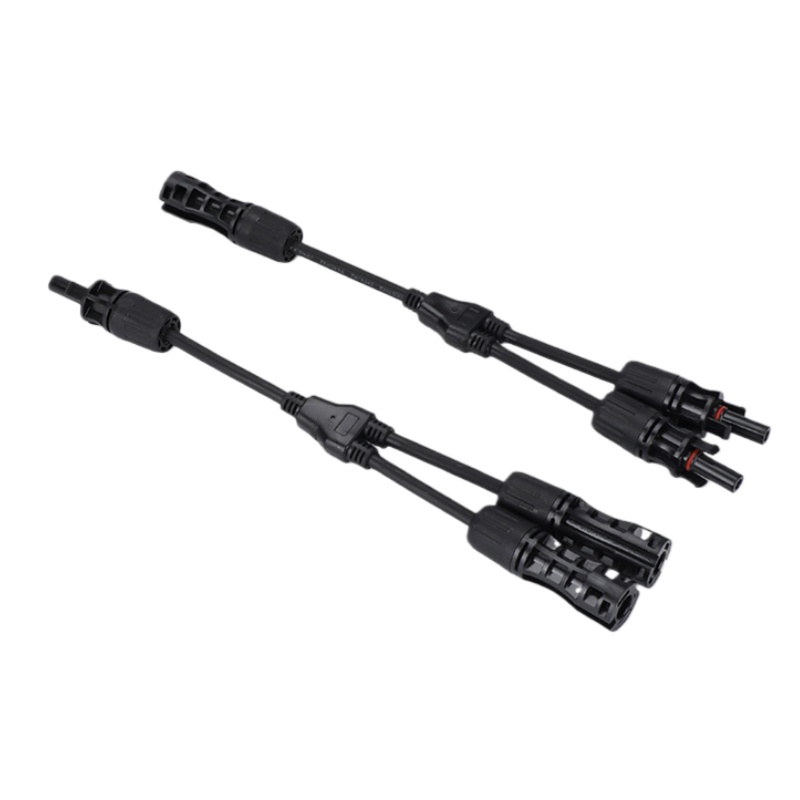

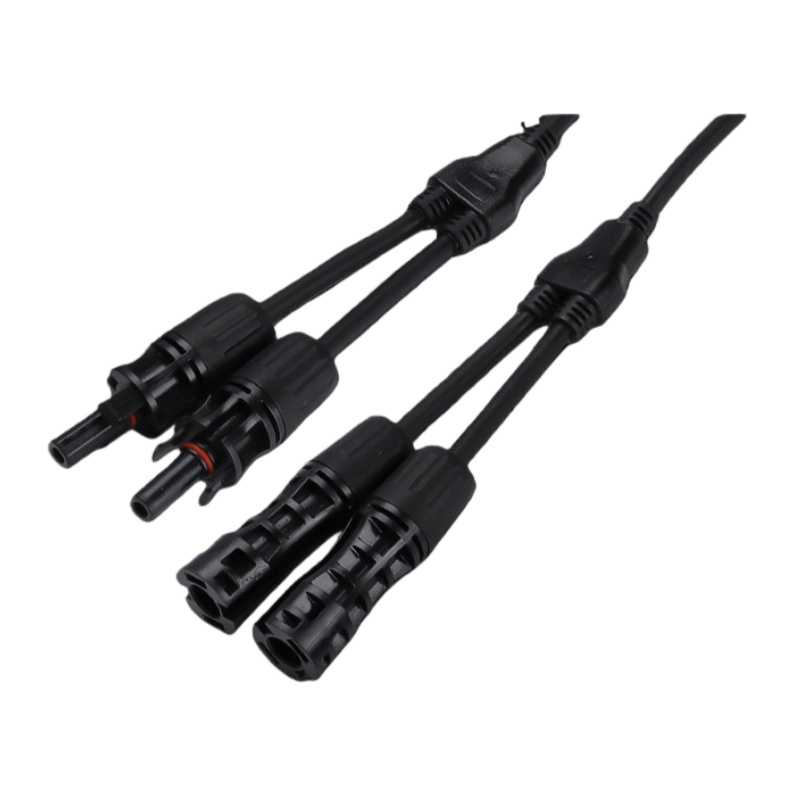

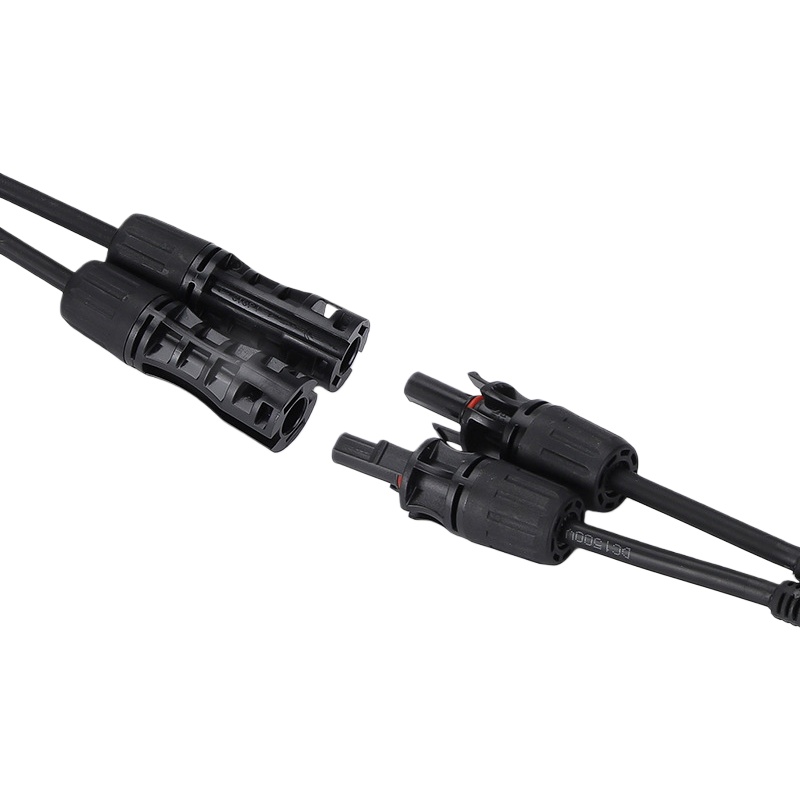

Y-Type 3-Way 1500V MC4 PV Connector, Solar Panel Parallel Adapter, 1-to-2 Splitter Plug for Solar Modules

  • Housing Material: PPO Insulation Material

  • Connection Method: Plug-in Connection

  • Inner Core Material: Tin-Plated Copper

  • Plug Resistance: 1 MΩ

  • Protection Class: IP67

  • Wiring Specification: 2.5/4.0/6.0 mm²

  • Operating Current: 30 A

  • Operating Voltage: DC 1000 V

  • Test Voltage: DC 600 V

  • Temperature Range: -40°C ~ +85°C

  • Pollution Degree: CAT III/2

  • Insertion Force: ≤ 50 N

  • Extraction Force: ≤ 50 N
