  • T-Type 4-Way 1000V MC4 PV Connector, Solar Panel Parallel Adapter, 1-to-4 Splitter Plug for Solar Modules

  • T-Type 4-Way 1000V MC4 PV Connector, Solar Panel Parallel Adapter, 1-to-4 Splitter Plug for Solar Modules

    ISO 9001  IATF 16949 CE RoHS Certification

    • 0.00
      0.00
商品描述

ISO 9001  IATF 16949 CE RoHS Certification

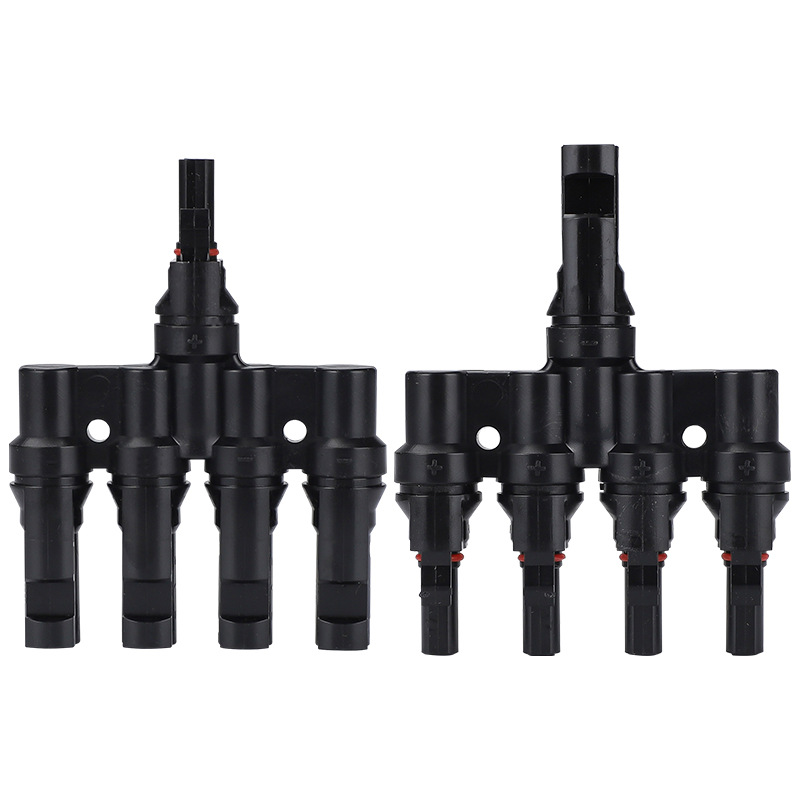

T-Type 4-Way 1000V MC4 PV Connector, Solar Panel Parallel Adapter, 1-to-4 Splitter Plug for Solar Modules

Insulating Material: PC

Contact Material: Brass Rod

Rated Current: 50A

Rated Voltage: 1000V (TUV) 600V (UL)

Test Voltage: 6KV (TUV 50HZ, 1MIN)

Contact Resistance: <0.5MΩ

Protection Rating: IP67

Ambient Temperature Range: -40°C~+85°C

Flammability Rating: UL 94-VO

Safety Level: Class 2

Hole Diameter: 4MM
