US31011 MC4 Photovoltaic Connector, 1500V Panel-Mount Waterproof Terminal for Combiner Boxes & Inverters
Product Number: US31011
Specifications:
- Voltage Rating: 1500V DC
- Current Rating:
- 30A (Compatible with 2.5mm², 4mm², 6mm² cables; 14AWG, 12AWG, 10AWG)
- 45A (Compatible with 4mm², 6mm² cables; 12AWG, 10AWG)
- Mounting Type: Snap-in Panel Mount
- Metal Plug System: Ø2.5mm, Ø4mm, Ø6mm
- Maximum Operating Temperature: +105°C (IEC)

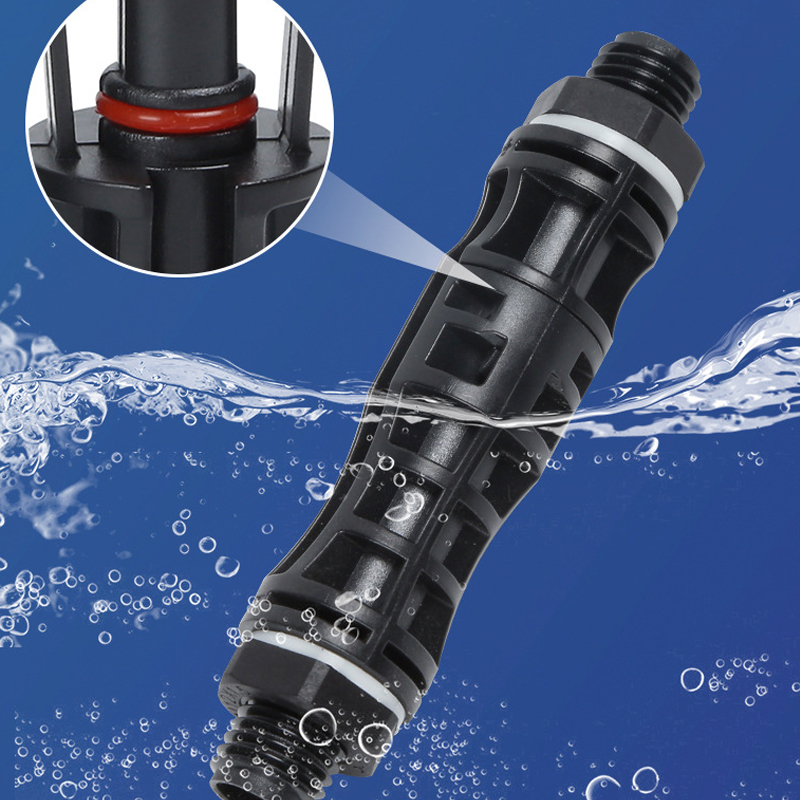

- Protection Rating: IP67 (Waterproof & Dustproof)
- Terminal Material: Tinned Copper / Silver-Plated Copper
- Insulation Material: PC / PPO
- Application: Suitable for transportation systems, railways, electric warehouse forklifts, heavy-duty electric machinery, and electric sightseeing vehicles
Detailed Product Description

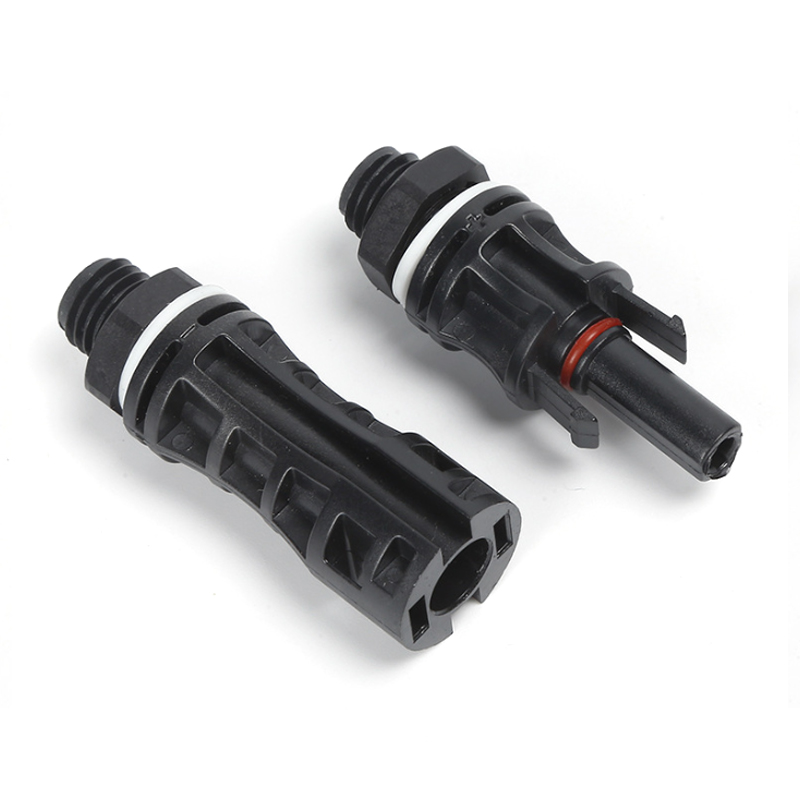

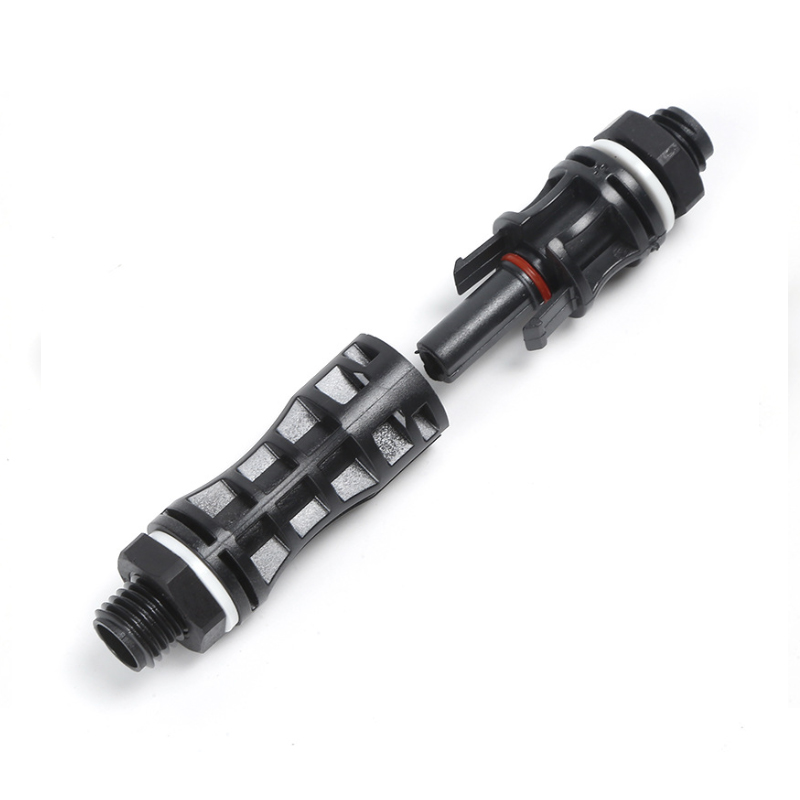

This panel-mounted MC4 photovoltaic connector is engineered for reliable high-current power transmission, making it an ideal interface for solar energy systems, industrial equipment, and battery-powered vehicles.
Built with tinned copper or silver-plated copper terminals, it ensures low resistance, efficient power transfer, and corrosion resistance. The snap-in panel mount system allows for quick, secure installation in solar inverters, combiner boxes, and control panels.
Designed with PC/PPO insulation housing, this connector provides superior heat resistance, flame retardancy, and durability. With a 1500V voltage rating and up to 45A current capacity, it meets IEC safety standards for high-power energy applications. The IP67 waterproof and dustproof rating ensures reliable operation in harsh outdoor and industrial environments.
