US31007 MC4 Photovoltaic Connector, Waterproof Solar Panel Connection Adapter
Product Number: US31007
Specifications:
- Terminal Material: Tinned Pure Copper
- Insulation Material: PPO
- Locking System: Snap-in
- Flame Retardant Rating: UL-94-V0
- Corrosion Resistance: EC 60068-2-52
- Touch Protection (Unmated State) & Contact Resistance: IP2X / 0.5mΩ
- Rated Voltage: 1000V DC (IEC)
- Rated Current: 10A, 15A, 20A, 25A, 30A
- Operating Temperature Range: -40°C to +90°C (IEC) / -40°F to +194°F (UL)
- Protection Rating: IP67
- Application: Provides a secure and reliable electrical connection between solar panels in photovoltaic power systems
Detailed Product Description
This MC4 solar panel connector is an essential component for connecting solar panels safely and efficiently in renewable energy systems. Built with tinned pure copper terminals, it ensures high conductivity and low contact resistance (0.5mΩ), minimizing power loss.

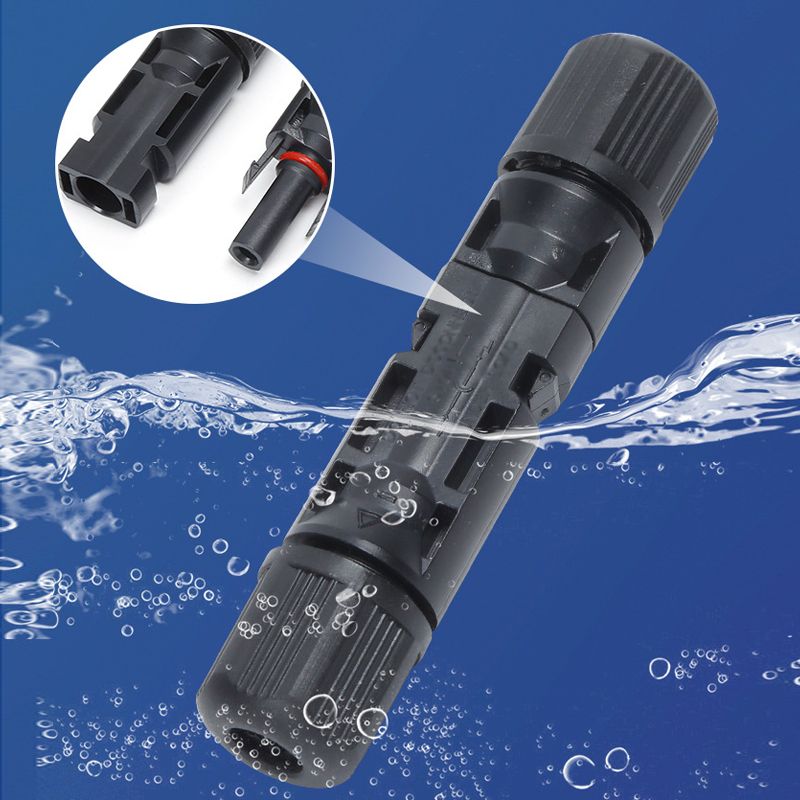

The snap-in locking system provides secure and stable connections, preventing accidental disconnections while maintaining IP67-rated waterproof and dustproof protection. The PPO insulation housing offers high durability, UV resistance, and flame retardancy (UL-94-V0), ensuring long-term outdoor reliability.
With a rated voltage of 1000V DC and current handling up to 30A, this solar panel connection adapter is ideal for large-scale photovoltaic farms, residential rooftop solar systems, and off-grid solar power setups. It complies with IEC and UL safety standards, making it a trusted choice for solar energy installations.
