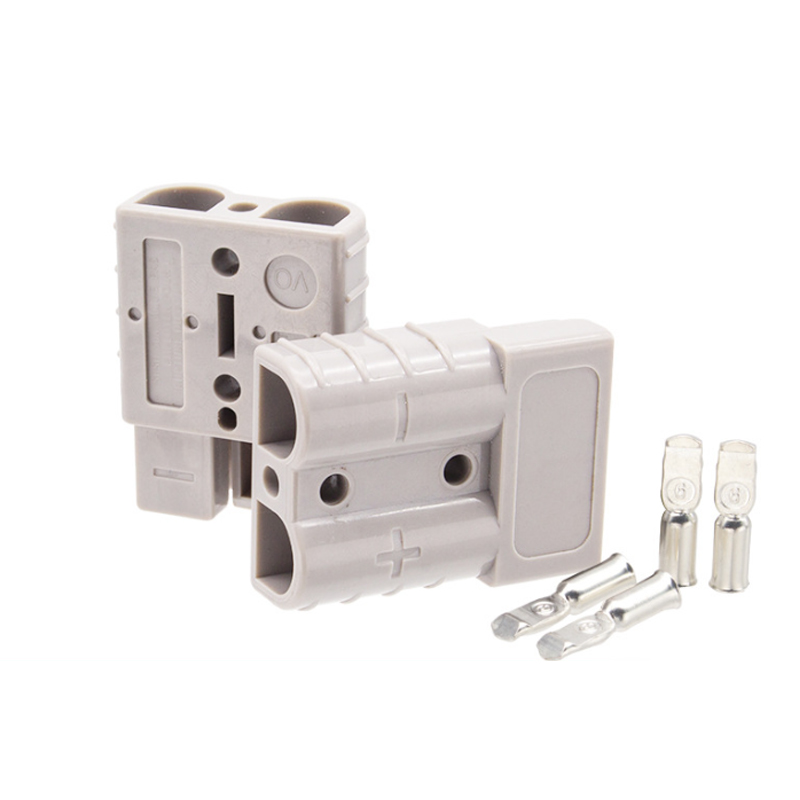

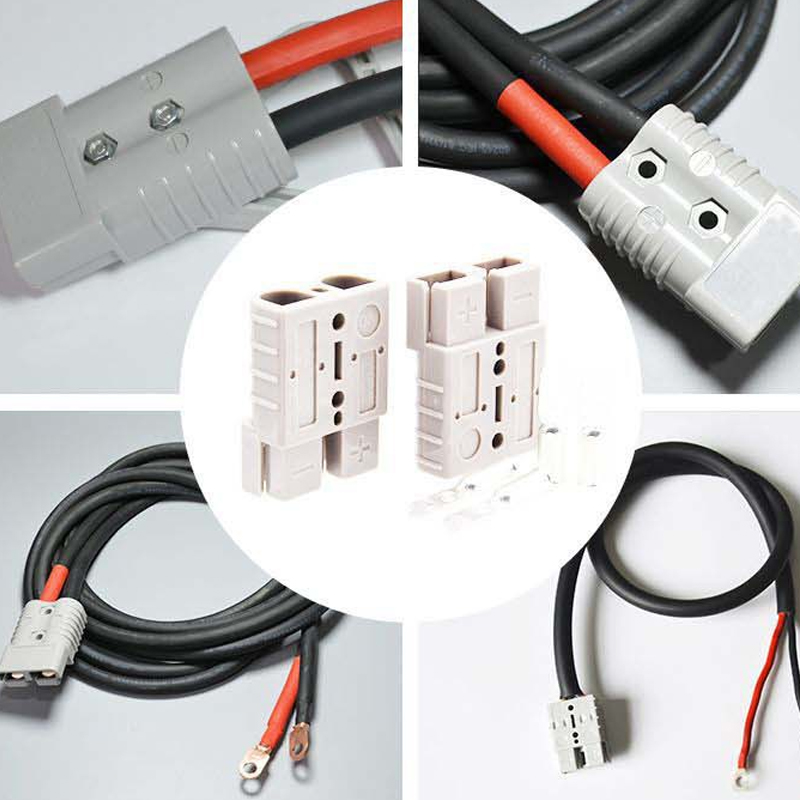

US31010 175A Dual-Pole Battery Connector, High-Current Charging Plug for Lawn Mowers, Golf Carts, and Electric Vehicles

Return to List >>

Consultation cooperation >>

The 175A Dual-Pole Battery Connector is a high-current, heavy-duty charging plug designed for electric vehicles (EVs), golf carts, lawn mowers, forklifts, and industrial machinery. Featuring silver-plated copper terminals, a flame-retardant PC housing, and a UL94 V-0 fire resistance rating, it ensures high conductivity, durability, and safe operation in demanding environments.

Product Number: US31010

Specifications:

Rated Current: 175A
Rated Voltage: 600V
Terminal Material: Silver-Plated Copper
Housing Material: Flame-Retardant PC
Flame Retardant Rating: UL94 V-0
Internal Spring Clip: 65Mn
Operating Temperature Range: -20°C to +105°C
Application: Suitable for transportation systems, railway applications, electric warehouse forklifts, and heavy-duty electric machinery

Detailed Product Description

This 175A battery connector is engineered for high-power industrial and transportation applications, providing a secure, efficient, and reliable connection for electric forklifts, railway systems, and large-scale electric machinery.

The silver-plated copper terminals ensure low contact resistance and superior conductivity, minimizing power loss and heat buildup. The flame-retardant polycarbonate (PC) housing (UL94 V-0 rated) enhances fire resistance and durability, making it ideal for high-temperature and high-load environments.

Equipped with 65Mn internal spring clips, this connector offers strong contact pressure, reducing wear and maintaining a stable, vibration-resistant connection over extended use. The 600V voltage rating and 175A current capacity make it a perfect high-power solution for industrial battery charging and energy transfer applications.
