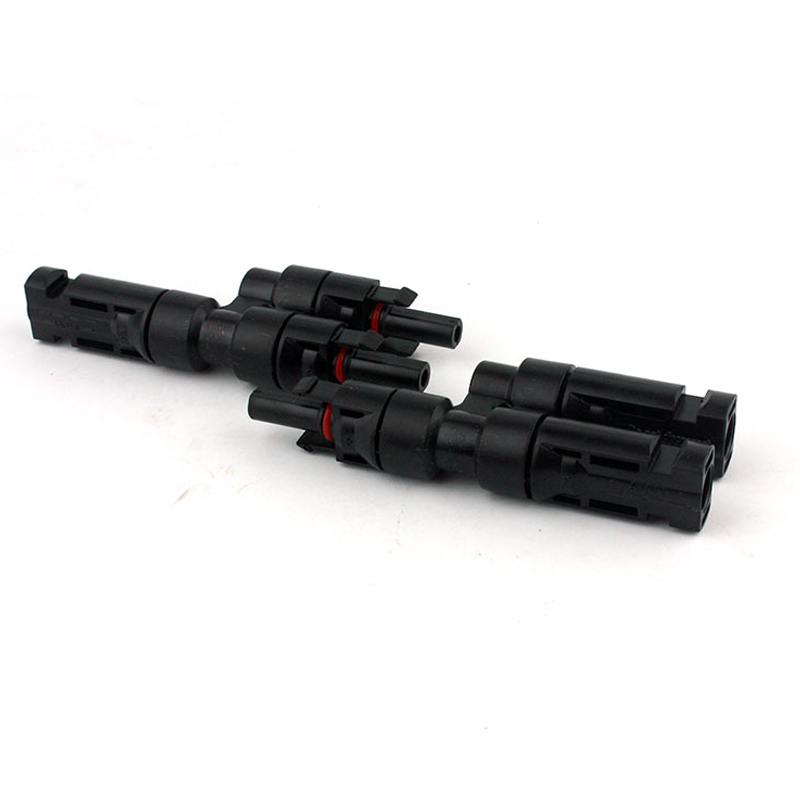

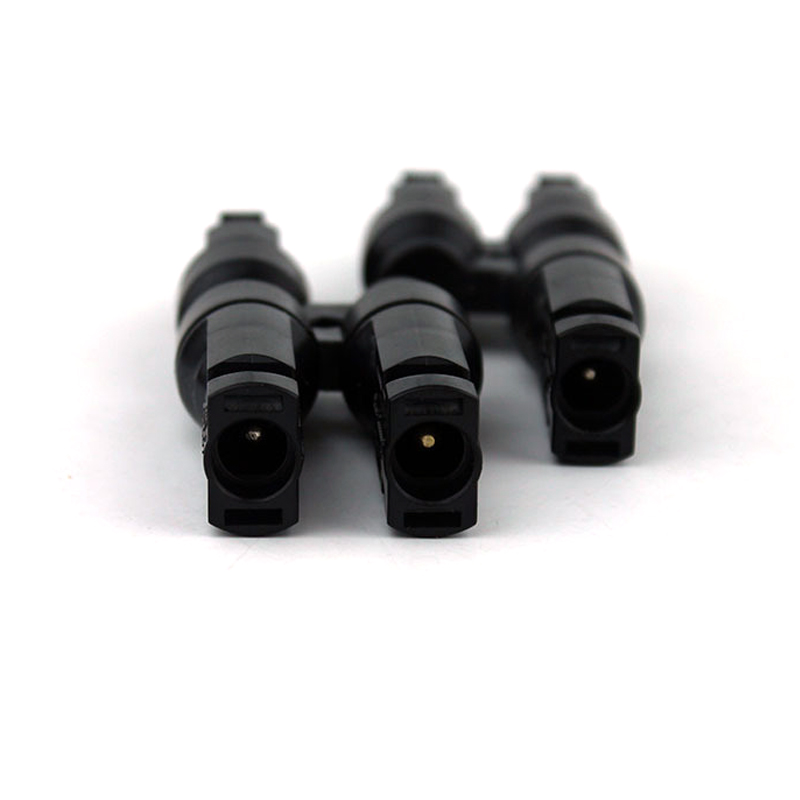

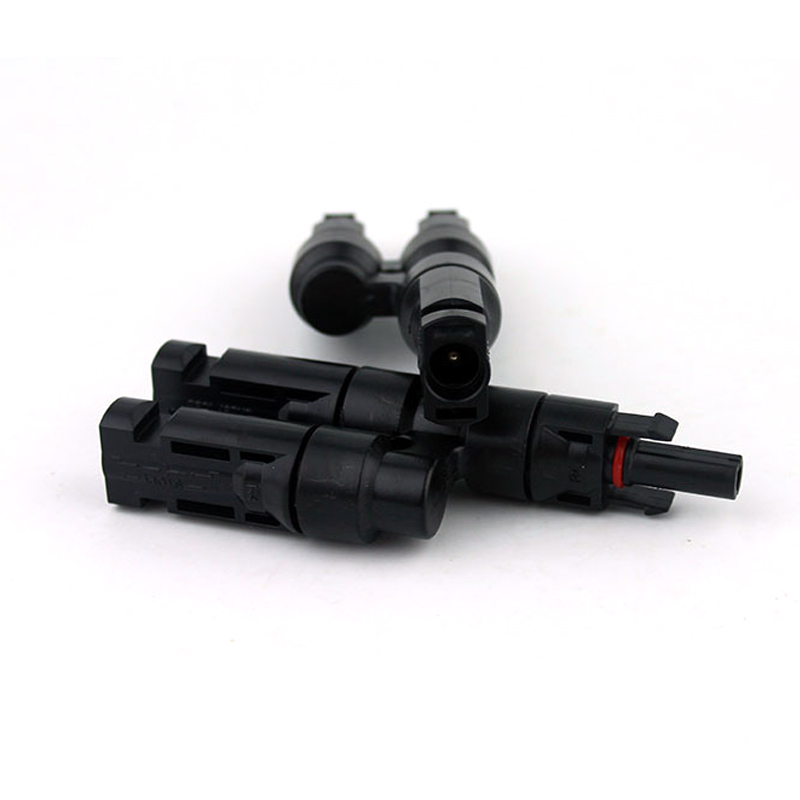

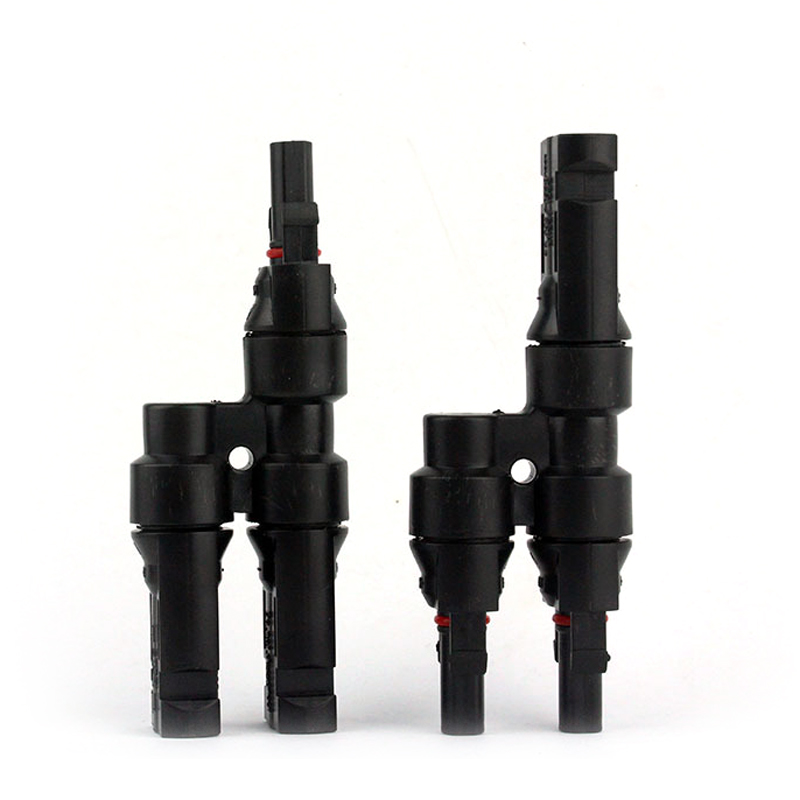

US31006 MC4 T-Branch Connector, 2-to-1 Solar Panel Parallel & Series Adapter
Product Number: US31006
Specifications:
- Test Voltage: 6000V (50Hz, 1 min)
- Contact Resistance: 1mΩ (T-Branch)
- Insulation Material: PPO
- Flame Retardant Rating: UL94-V0
- Compatible Wire Size: 2.5mm² - 6.0mm²
- Operating Temperature Range: -40°C to +110°C
- Rated Voltage: 1000V DC
- Overvoltage Category/Pollution Degree: CAT III/2
- Conductor Material: Copper, Silver-Plated
- Protection Rating: IP2X / IP67
- Application: Establishes a safe and reliable electrical connection between solar panels in parallel or series configurations
Detailed Product Description
This MC4 T-Branch Connector is a high-performance photovoltaic adapter designed to safely and efficiently interconnect solar panels in parallel or series. It supports 1000V DC operation and features a low 1mΩ contact resistance, ensuring optimal power transmission with minimal energy loss.
Built with flame-retardant PPO insulation (UL94-V0) and IP67-rated sealing, this solar panel connector is waterproof, dustproof, and UV-resistant, making it ideal for outdoor solar energy installations. The silver-plated copper contacts provide superior conductivity and corrosion resistance, while the secure locking mechanism ensures long-term stability in harsh environmental conditions.
Compatible with 2.5mm² to 6.0mm² solar cables, this MC4 2-to-1 adapter is widely used in residential rooftop solar systems, large-scale PV power stations, and off-grid solar applications. It facilitates quick and reliable solar panel connections, improving overall solar energy efficiency and system longevity.
