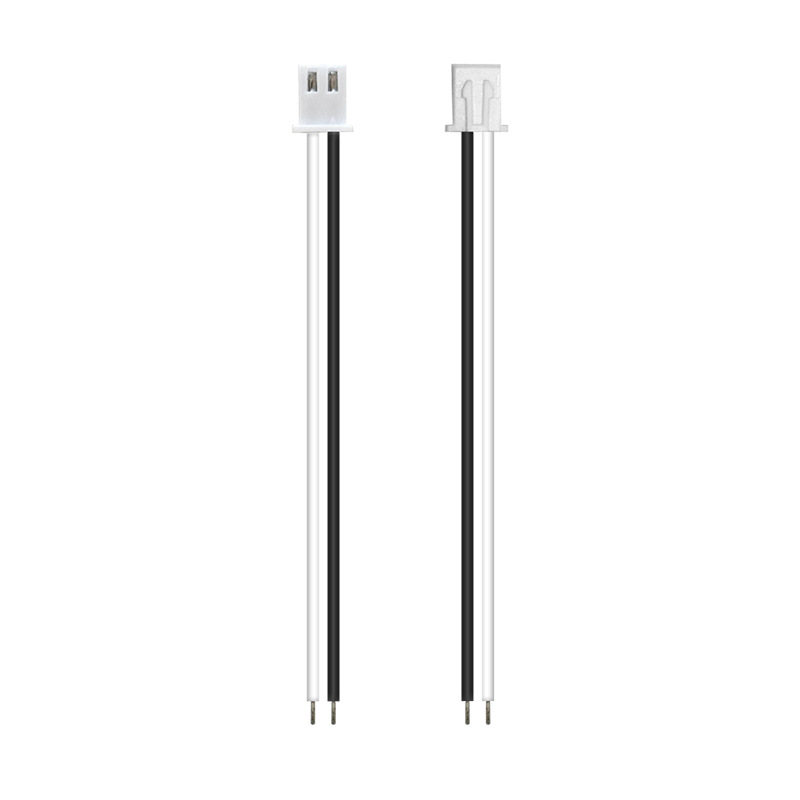

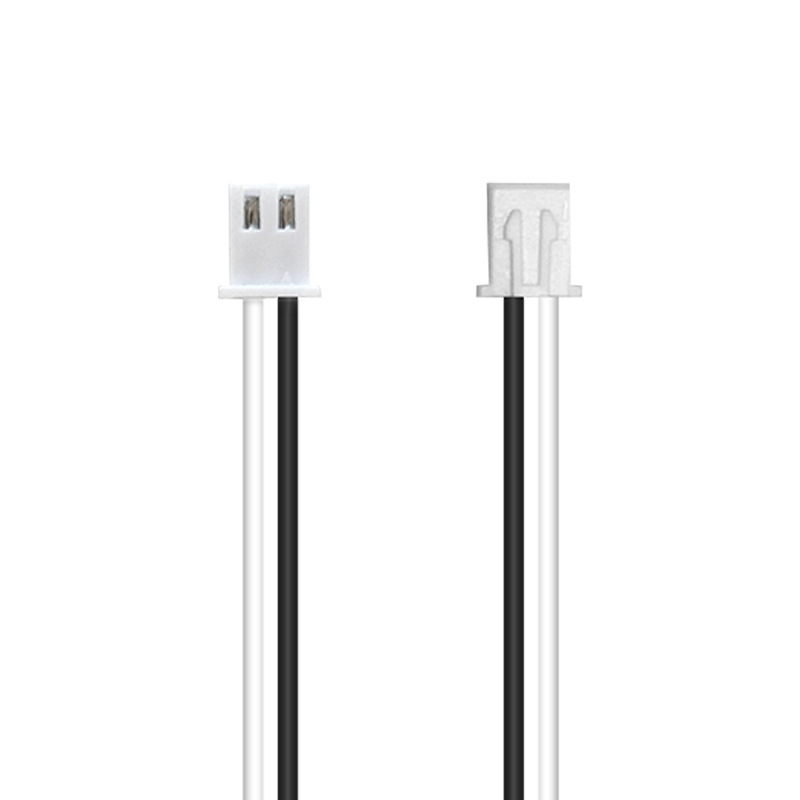

LY8345 2-pin single-ended terminal wire, XH-type terminal wire for LED light strip, connector for the internal circuit board of kettle, wiring harness processing
XH terminal wire harnesses adopt a standard 2.54mm pitch design, precision-crimped with phosphor bronze tinned terminals and eco-friendly PVC wires, featuring excellent electrical conductivity, high-temperature resistance, and corrosion resistance. Their compact structure saves space and ensures easy plugging/unplugging, widely used in home appliances, computer motherboards, industrial control, and automotive electronics to ensure stable signal transmission and highly reliable connections.
Manufacturing Process: Cold Pressing
Contact Material: PVC
Application Field: Toy LED Lights, Balance Cars
Product Certification: UL
Flame Retardant Grade: 80℃
Product Series: XH-2P Terminal Wire
Scenarios: Electric Hammers, Electric Fans, Electric Blankets, Hair Dryers, Table Lamps, LED Lights, Angle Grinders, Impact Drills, Cutting Machines, Generator Water Heaters, Kettles
Electronic Wire: Electronic Wire

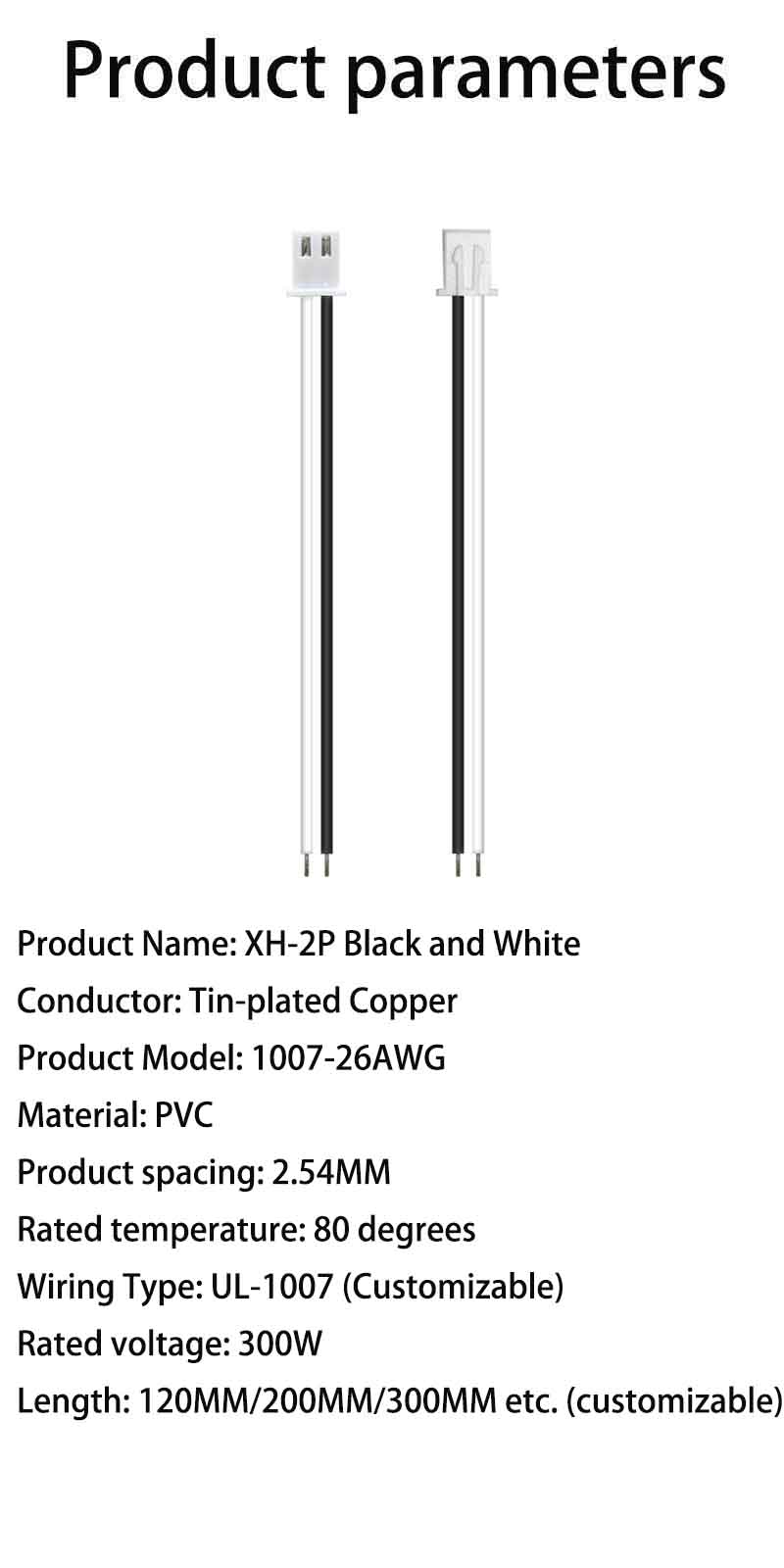

Product Name: XH-2P Black-White
Conductor: Tinned Copper
Product Model: 1007-26AWG
Material: PVC
Product Pitch: 2.54MM
Rated Temperature: 80℃
Wire Type: UL-1007 (Customizable)
Rated Voltage: 300V
Length: 120MM/200MM/300MM, etc. (Customizable)
