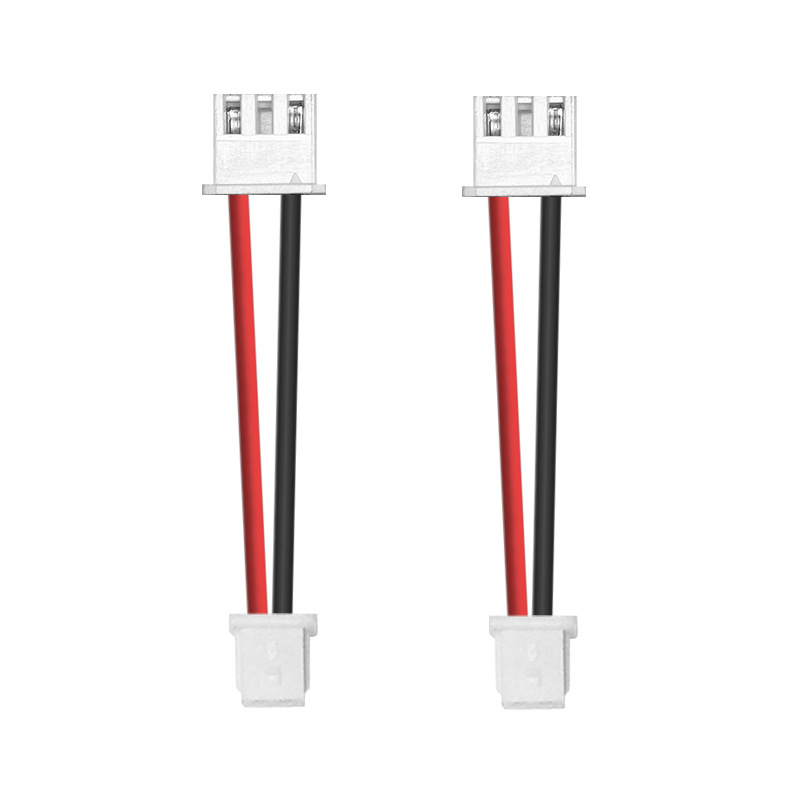

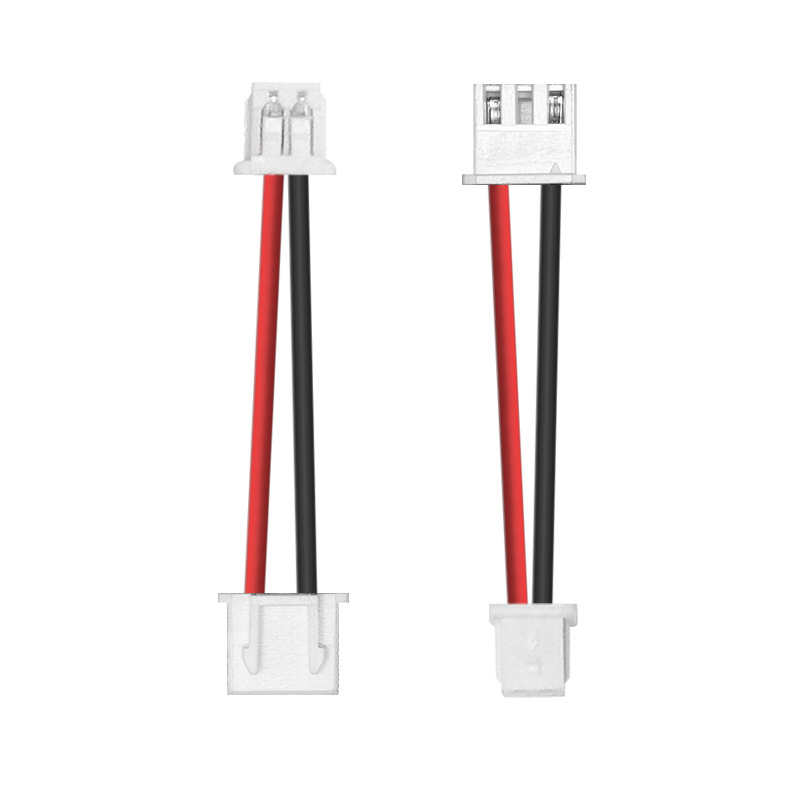

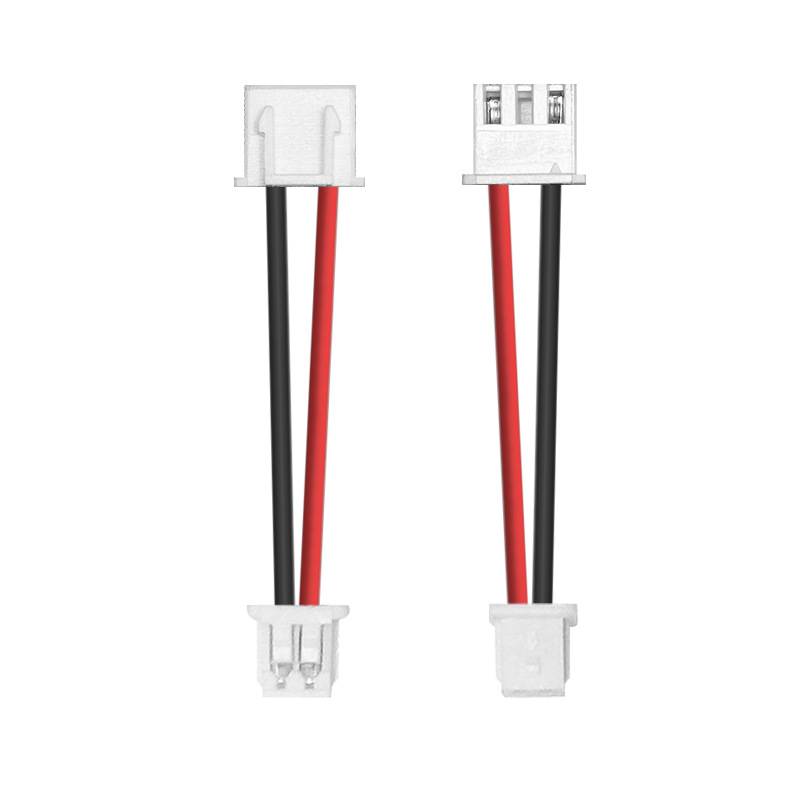

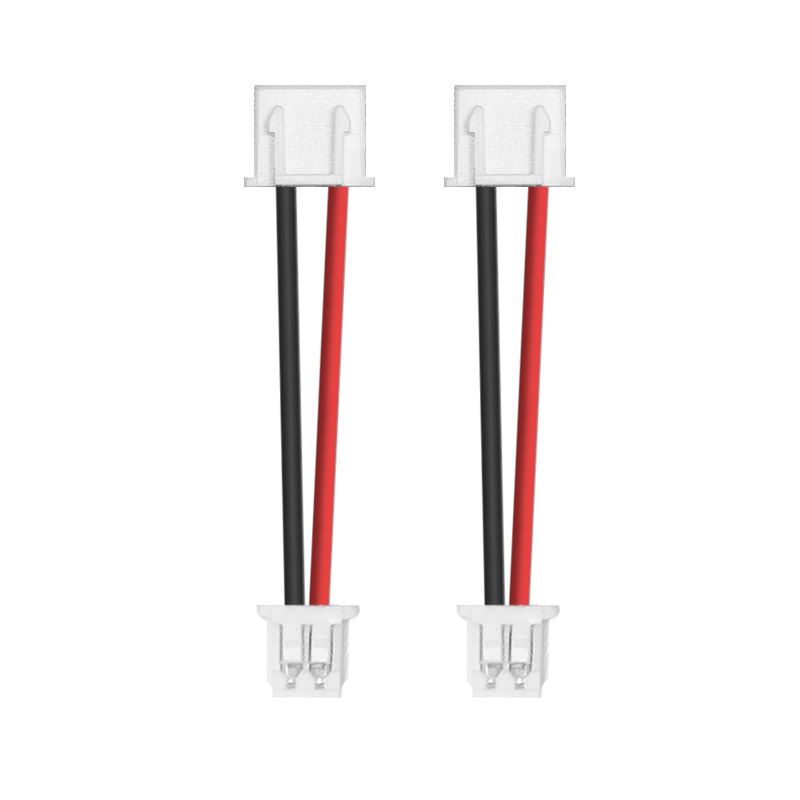

LY8346 1.25mm Terminal Wire Custom Cable Processing - Motherboard Connection Cable Customization with Red-Black 2.54mm Terminal Connection Wires & Ribbon Cables
XH terminal wire harnesses adopt a standard 2.54mm pitch design, precision-crimped with phosphor bronze tinned terminals and eco-friendly PVC wires, featuring excellent electrical conductivity, high-temperature resistance, and corrosion resistance. Their compact structure saves space and ensures easy plugging/unplugging, widely used in home appliances, computer motherboards, industrial control, and automotive electronics to ensure stable signal transmission and highly reliable connections.

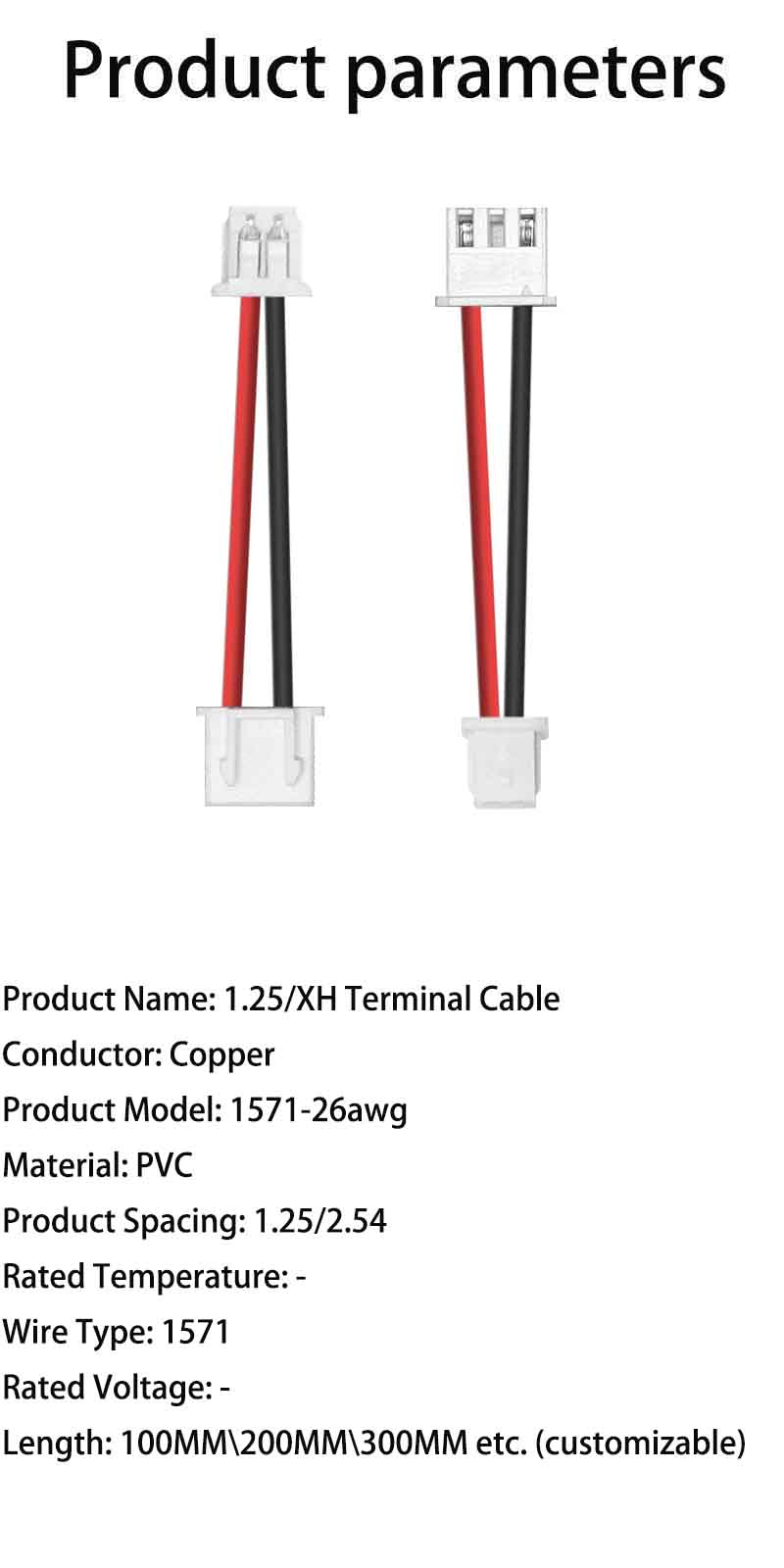

Wire Length: 150mm
Manufacturing Process: Cold Pressing
Contact Material: PVC
Product Certification: (N/A)
Flame Retardant Grade: (N/A)
Product Series: 1.25-2P+XH-3P
Product Name: 1.25/XH Terminal Wire
Conductor: Copper
Product Model: 1571-26AWG
Material: PVC
Product Pitch: 1.25mm/2.54mm
Rated Temperature: (N/A)
Wire Type: 1571
Rated Voltage: (N/A)
Length: 100MM/200MM/300MM, etc. (Customizable)
